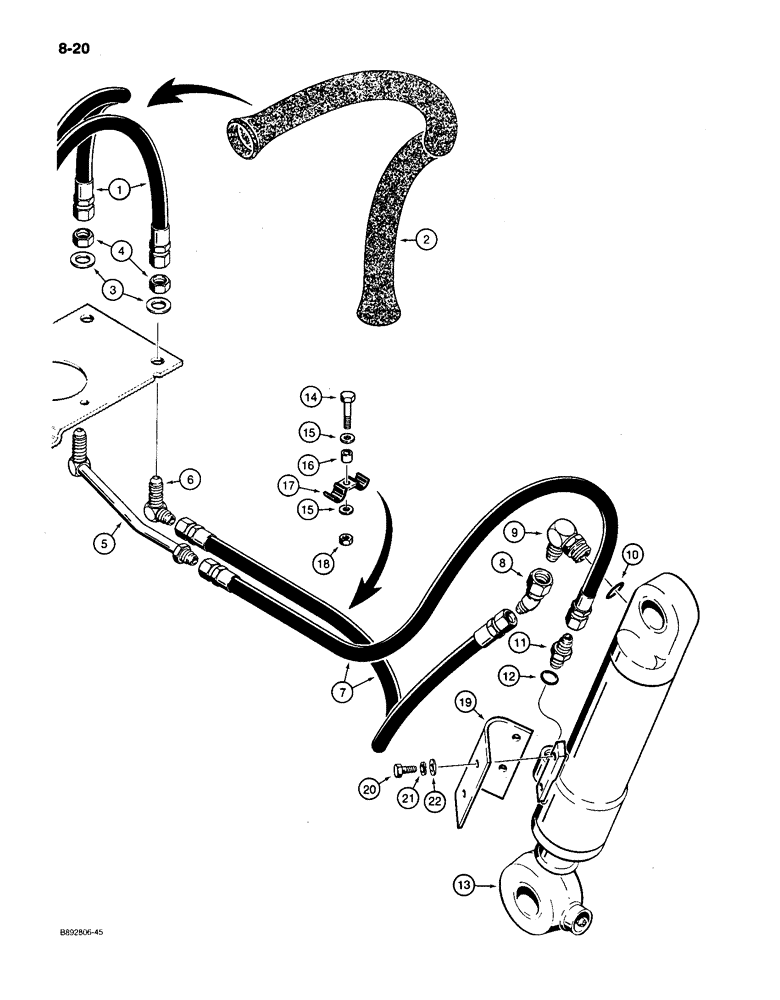

Запчасти Case 650 (8-20) - DOZER TILT HYDRAULIC CIRCUIT, GRILLE TO CYLINDER (08) - HYDRAULICS

1

R54751

HOSE

- 54 inch long, grille to leveling beam

2шт.

2

R52543

SLEEVE

- nylon, holds angle and tilt hoses together

1шт.

3

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish 1/32" Thk

1шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

5

R42439

TUBE,0.5" OD x 10.5, 0.9" L

- to rod end of tilt cylinder

1шт.

6

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

7

R42829

HOSE

- 33 inch long, to tilt cylinder

2шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, swivel, 3/4-16 inch flare x swivel

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 12 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

G109485

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt, parts list Figure 8-30

1шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

16

D76209

SPACER

- clamp

1шт.

17

R15257

CLAMP

- hoses

1шт.

18

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

19

R31935

GUARD

- tilt cylinder

1шт.

20

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.
