(8-18) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, TUBES TO GRILLE

Запчасти Case 650 (8-18) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, TUBES TO GRILLE (08) - HYDRAULICS

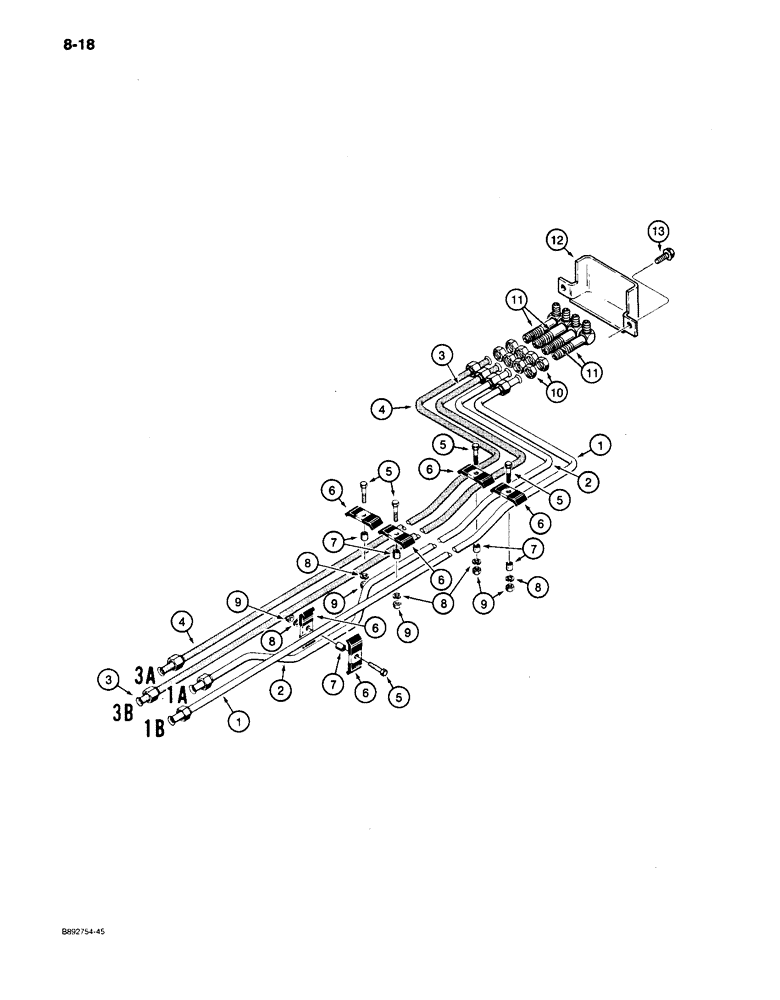

Схема запчастей Case 650 - (8-18) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, TUBES TO GRILLE (08) - HYDRAULICS
6
3
5
8
12
7
5
4
8
8
11
1
6
9
6
6
9
3
11
7
4
2
9
5
6
2
9
7
1
5
8
6
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R34844

TUBE,0.5" OD

- B port, tilt circuit

1шт.

2

R34850

TUBE,0.5" OD

- A port, tilt circuit

1шт.

3

R34846

TUBE,0.5" OD

- B port, angle circuit

1шт.

4

R34848

TUBE,0.5" OD

- A port, angle circuit

1шт.

5

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

5шт.

6

R25528

CLAMP

- tubes

6шт.

7

C18330

SPACER

- clamps

5шт.

8

492-11038

LOCK WASHER,3/8"

5шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

8шт.

11

R33311

FITTING

ELBOW - 90 degree, bulkhead

4шт.

12

R34008

GUARD

- bulkhead elbows

1шт.

13

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.
