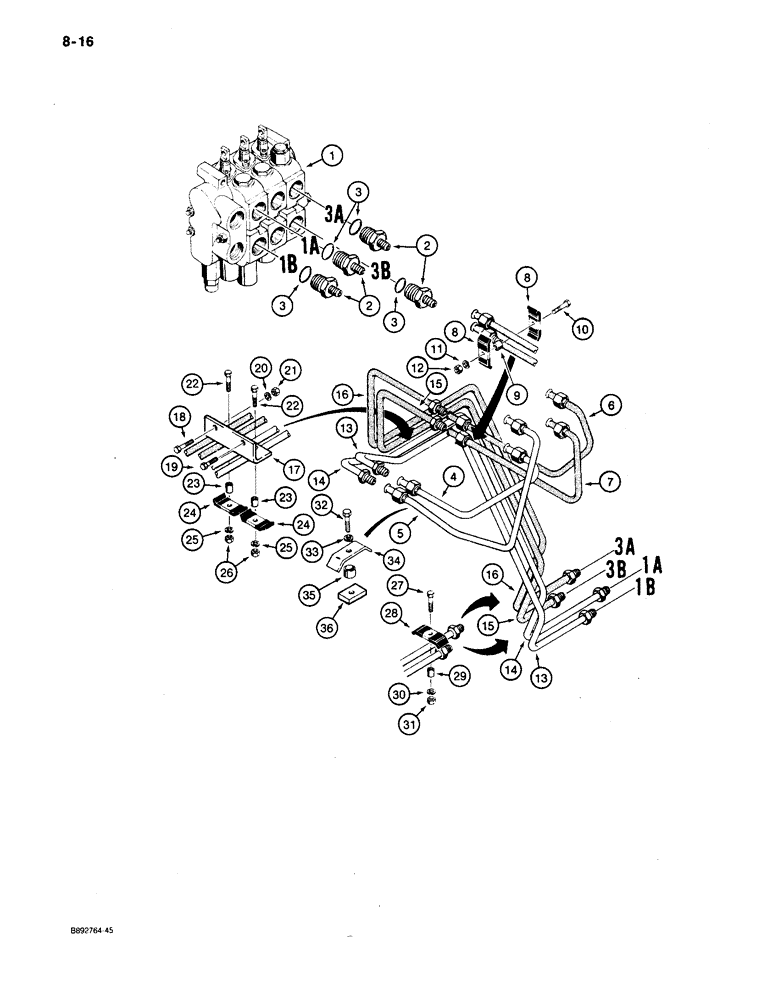

Запчасти Case 650 (8-16) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE AND DESCENDING TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, for correct assembly and components see Figure 8-46 or 8-48

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

4

R34828

TUBE,12.7 mm OD x 395, 192 mm L

- B port, tilt circuit

1шт.

5

R46691

TUBE,12.7 mm OD

- A port, tilt circuit

1шт.

6

R34834

TUBE,0.5" OD

- A port, angle circuit

1шт.

7

R34832

TUBE,0.5" OD

- B port, angle circuit

1шт.

8

R25528

CLAMP

- angle tubes

2шт.

9

D76208

SPACER

- angle tubes

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

R34836

TUBE,0.5" OD

- B port, tilt circuit

1шт.

See Figure 8-18 for tubes to grille.

1шт.

14

R34838

TUBE,0.5" OD

- A port, tilt circuit

1шт.

See Figure 8-18 for tubes to grille.

1шт.

15

R34840

TUBE,0.5" OD

- B port, angle circuit

1шт.

See Figure 8-18 for tubes to grille.

1шт.

16

R34842

TUBE,0.5" OD

- A port, angle circuit

1шт.

See Figure 8-18 for tubes to grille.

1шт.

17

R35272

SUPPORT

BRACKET - tubes

1шт.

18

413-627

BOLT - hex, 3/8 NC x 1-1/2 inch, bracket mounting, left-hand

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, bracket mounting, right-hand

1шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, Clamp mounting

2шт.

23

C18330

SPACER

- clamp

2шт.

24

R25528

CLAMP

- tubes

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

28

R25528

CLAMP

- tubes

2шт.

29

C18330

SPACER

- clamps

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

D40236

CLAMP

- tubes

1шт.

35

D76208

SPACER

- clamp, round

1шт.

36

A19305

SPACER

- clamp, flat

1шт.
