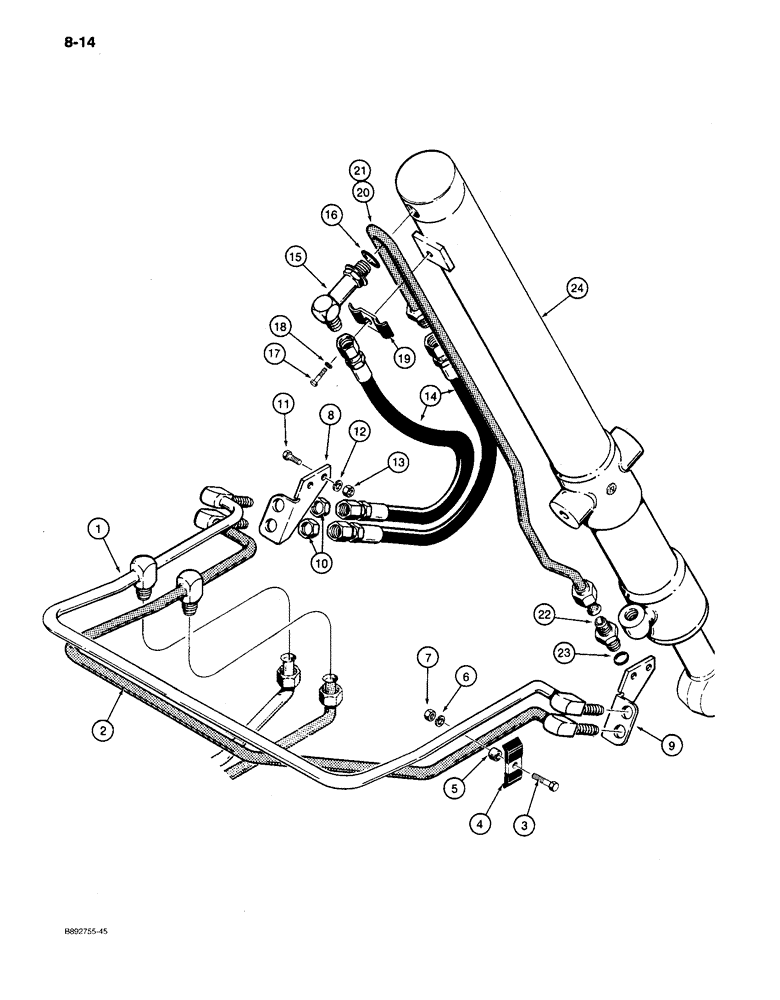

Запчасти Case 650 (8-14) - DOZER LIFT HYDRAULIC CIRCUIT, CROSSOVER TUBES TO CYLINDERS (08) - HYDRAULICS

1

R57393

TUBE ASSY.,15.87 mm OD

TUBE - crossover, upper, A port, to closed end of lift cylinders

1шт.

2

R34061

TUBE,0.625" OD

- crossover, lower, B port, to rod end of lift cylinders

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

4

R25528

CLAMP

- tubes

1шт.

5

D76209

SPACER

- clamp

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

R56502

SUPPORT

BRACKET - tube mounting, left-hand

1шт.

9

R56507

SUPPORT

BRACKET - tube mounting, right-hand

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.

14

18917

HOSE

- 34-3/4 inch (883 mm), Serial Range: long,-cylinders

4шт.

15

D25136

FITTING

ELBOW - 90 degree, long, adjustable, Includes: Ref. 16

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

R34176

PIPE

CLAMP - lift cylinder tubes

2шт.

20

R34101

TUBE,0.625" OD

- rod end, left-hand

1шт.

21

R34102

TUBE,0.625" OD

- rod end, right-hand

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

2шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

G101217

CYLINDER

ASSEMBLY - dozer lift, parts list Figure 8-28

2шт.
