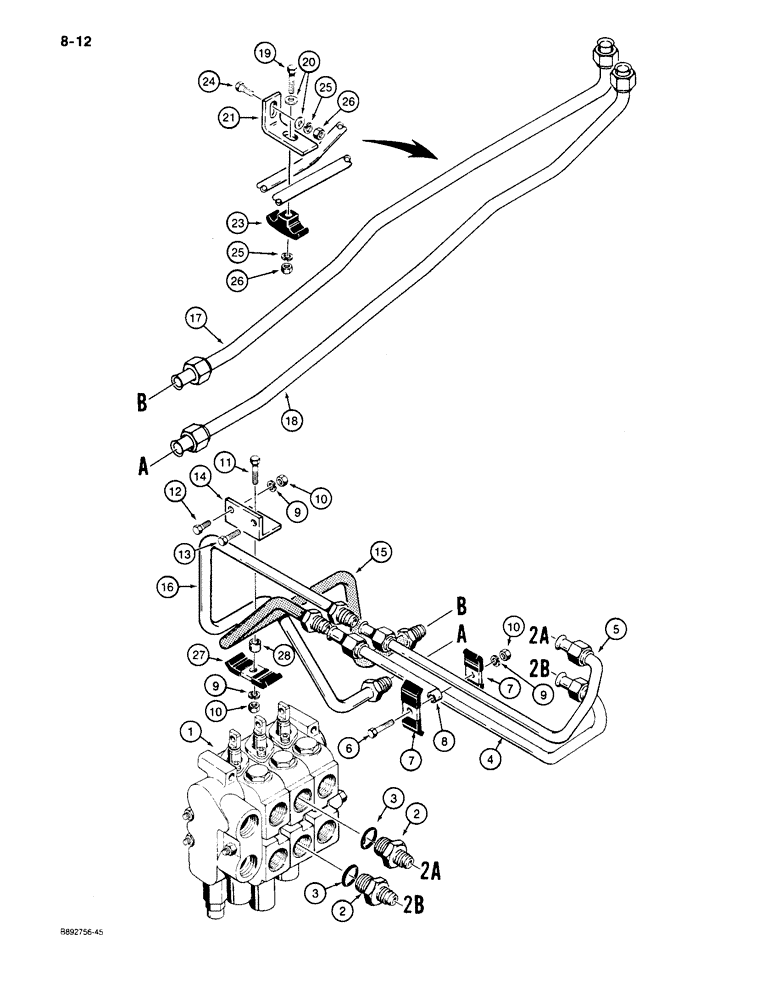

Запчасти Case 650 (8-12) - DOZER LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO CROSSOVER TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, for correct assembly and components see Figure 8-46 or 8-48

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

R57004

TUBE,19.04 mm OD x 134, 557 mm L

- at control valve, lower, B port

1шт.

5

R57002

TUBE,19.04 mm OD

- at control valve, upper, A port

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

7

D40236

CLAMP

- lift tubes

2шт.

8

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- lift tubes

1шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, left-hand

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, RH

1шт.

14

R34219

SUPPORT

BRACKET - clamp mounting

1шт.

15

R34977

TUBE,0.75" OD

- lower, B port

1шт.

16

R39884

TUBE,0.75" OD

- upper, A port

1шт.

17

R49702

TUBE,0.75" OD

- B port

1шт.

18

R49700

TUBE,0.75" OD

- A port

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

21

R34970

SUPPORT

BRACKET - clamp mounting

1шт.

23

D124301

CLAMP,3/4" ID

- tubes

1шт.

24

413-6200

BOLT - hex, 3/8 NC x 1-1/4 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

D40236

CLAMP

- tubes

1шт.

28

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.
