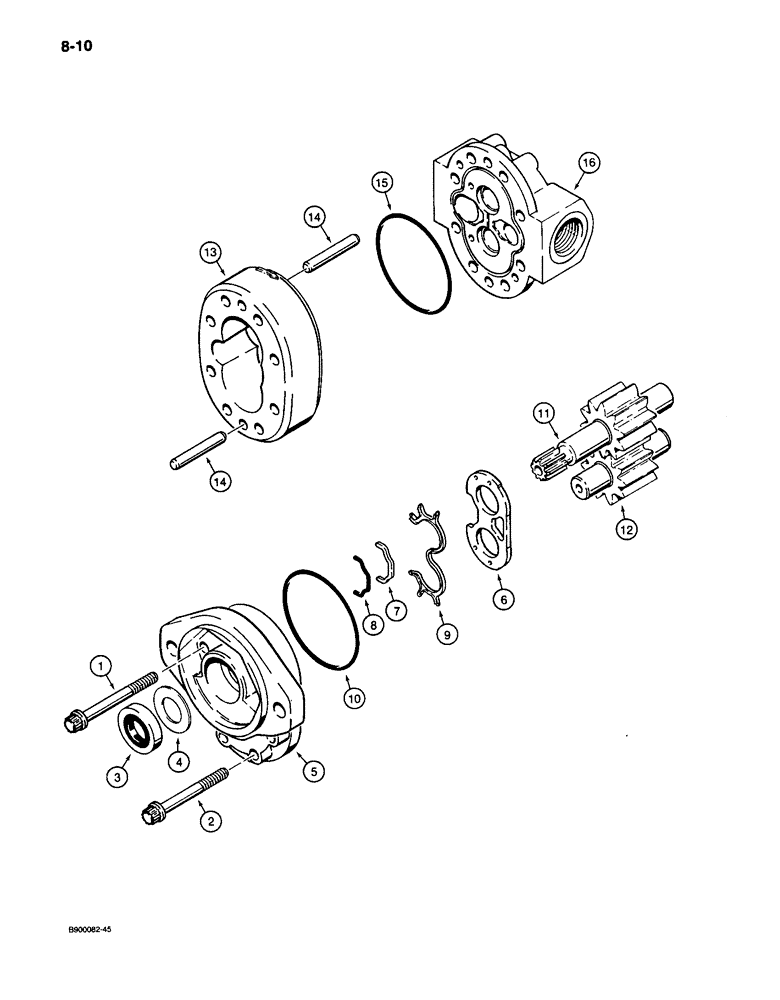

Запчасти Case 650 (8-10) - EQUIPMENT PUMP ASSEMBLY - R57348 (08) - HYDRAULICS

R57348

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, Includes: Ref. 1 - 16

1шт.

396801A2R

REMAN-HYD PUMP

650; Reman for New P/N R57348

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point head, 3/8 NC x 3-3/4 inch

4шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - 12 point head, 3/8 NC x 3-1/2inch

4шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

Part of pump repair kit P/N S301061.

1шт.

4

H104117

WASHER

- seal

1шт.

Part of pump repair kit P/N S301061.

1шт.

5

S301060

LARGE PLATE

COVER - shaft end

1шт.

6

1971509C1

PLATE

- wear

1шт.

Part of pump repair kit P/N S301061.

1шт.

7

1971506C1

SEAL

- bearing

1шт.

Part of pump repair kit P/N S301061.

1шт.

8

1971507C1

O-RING

- moulded, bearing seal

1шт.

Part of pump repair kit P/N S301061.

1шт.

9

S301059

GASKET

- wear plate

1шт.

Part of pump repair kit P/N S301061.

1шт.

10

H756221

O-RING,4.987" ID x 5.193" OD

- shaft end cover to gear housing

1шт.

Part of pump repair kit P/N S301061.

1шт.

11

S301057

GEAR

AND SHAFT - drive

1шт.

12

S301058

GEAR-SET

GEAR AND SHAFT - driven

1шт.

S301056

GEAR

HOUSING ASSEMBLY - gear, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - dowel, cover locating

2шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

- port end cover to gear housing

1шт.

Part of pump repair kit P/N S301061.

1шт.

16

S301055

COVER

- port end

1шт.

S301061

WEB

KIT - pump repair, Includes: Ref. 3, 4, 6 - 10 and 15

1шт.
