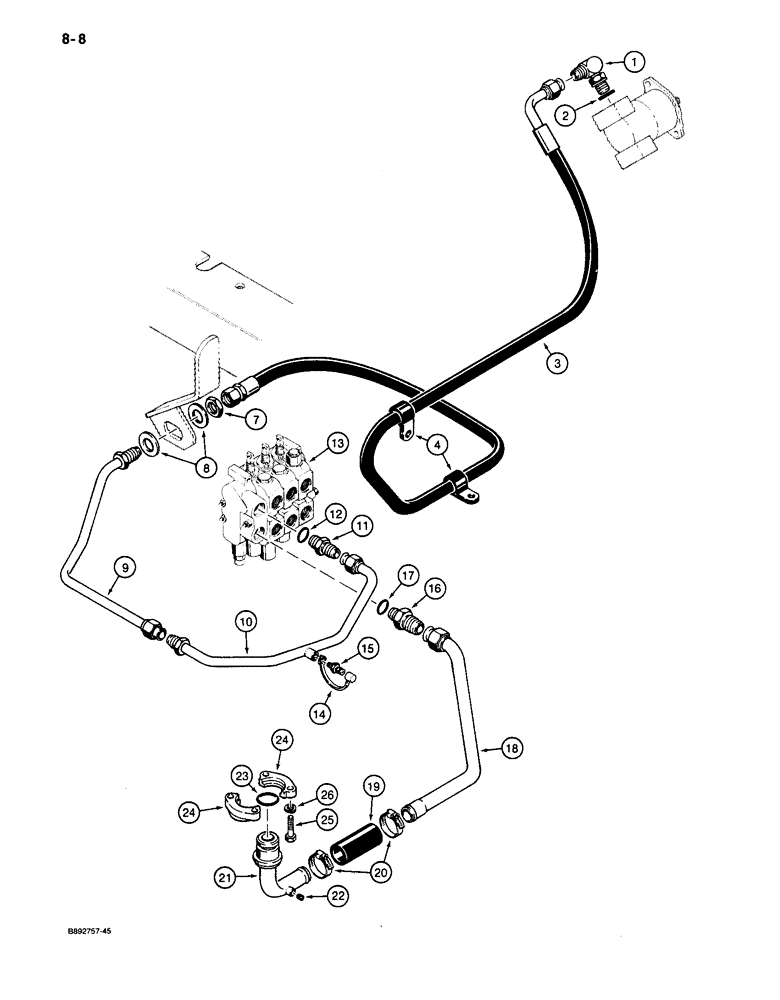

Запчасти Case 650 (8-08) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR (08) - HYDRAULICS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

R57619

HOSE

-, Serial Range: pump-tube

1шт.

4

R43738

CLAMP

- hose, use existing hardware

2шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 inch NF

1шт.

8

195-2116

WASHER,1.19" ID x 2" OD x 0.08" Thk

- flat, 1-1/8 x 2 x 1/16 inch

2шт.

9

R57345

TUBE

- to control valve, from hose

1шт.

10

R57365

TUBE

- at control valve

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control, equipment, for correct assembly and components see Figures 8-46 - 8-58

1шт.

14

H434163

DUST CAP

CAP - dust, coupler

1шт.

15

R55912

NIPPLE

COUPLER - quick disconnect, diagnostic check

1шт.

16

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 O-ring, Incl. Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

R56670

TUBE ASSY.

TUBE - control valve to hydraulic reservoir

1шт.

19

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- from reservoir, cut from S118465 bulk hose, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

20

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

(27 mm - 51 mm dia) #24, 1.06/2.00 Type F Worm

2шт.

21

R33400

TUBE,1.25" OD x 4.2, 3.64" L

- to hydraulic reservoir

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

23

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- tube, at hydraulic reservoir

1шт.

24

R27612

CLAMP

- split flange

2шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk, Use to make Ref. 19 1.25" ID x 180.00", SAE 100R3

1шт.
