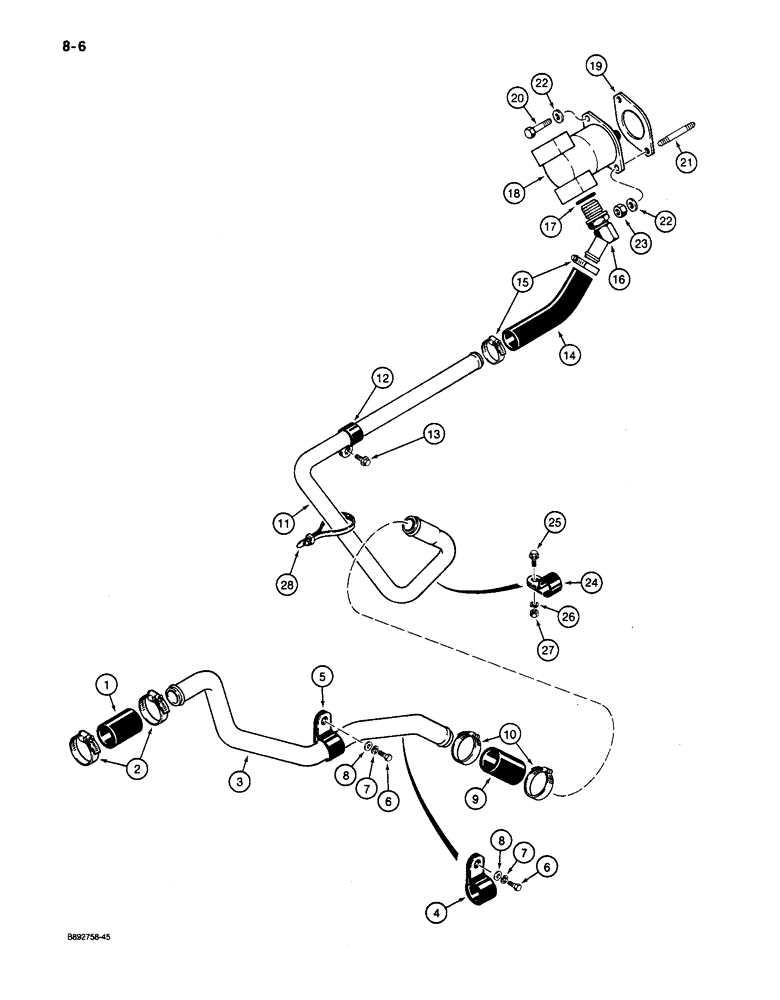

Запчасти Case 650 (8-06) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

R43916

HOSE

- 1-1/2 inch (38 mm) ID x 3 inch (76 mm) long, hydraulic reservoir to tube, cut from R45924 hose

1шт.

2

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia

2шт.

3

R56439

TUBE,1.5" OD

- from hydraulic reservoir hose

1шт.

4

49773

CLAMP

- tube, reservoir end

1шт.

5

R11860

CLAMP

- tube, pump end

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

R43916

HOSE

- 1-1/2 inch (38 mm) ID x 3 inch (76 mm) long, hydraulic reservoir tube to equipment pump supply hose, cut from R45924 hose, see below

1шт.

10

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia

2шт.

11

R57340

TUBE,31.75 mm OD

- to pump supply hose

1шт.

12

D40471

CLAMP

- tube

1шт.

13

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

14

D35463

HOSE

- 1-1/4 x 1-3/4 x 13-5/8 inch, tube to equipment pump, cut from S118465 hose, see below

1шт.

15

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

16

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Pump inlet, Incl. Ref. 17 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

18

R57348

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, parts list Figure 8-10

1шт.

396801A2R

REMAN-HYD PUMP

650; Reman for New P/N R57348

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

PUMP, FOR MOUNTING COUPLER SEE 650G CATALOG FIGURE 2-20 IT NO. 29 FRONT GEAR COVER....PART NO. IS J923237.

1шт.

19

A77441

GASKET

- equipment pump mounting

1шт.

20

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

21

R57506

STUD

- pump mounting

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

24

D40471

CLAMP

- tube

1шт.

25

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, 3/8 inch NC

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

R45924

HOSE

- 1-1/2 inch ID x 9-1/2 inch long, use to make Refs. 1 and 9

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk, Use to make Ref. 14 1.25" ID x 180.00", SAE 100R3

1шт.
