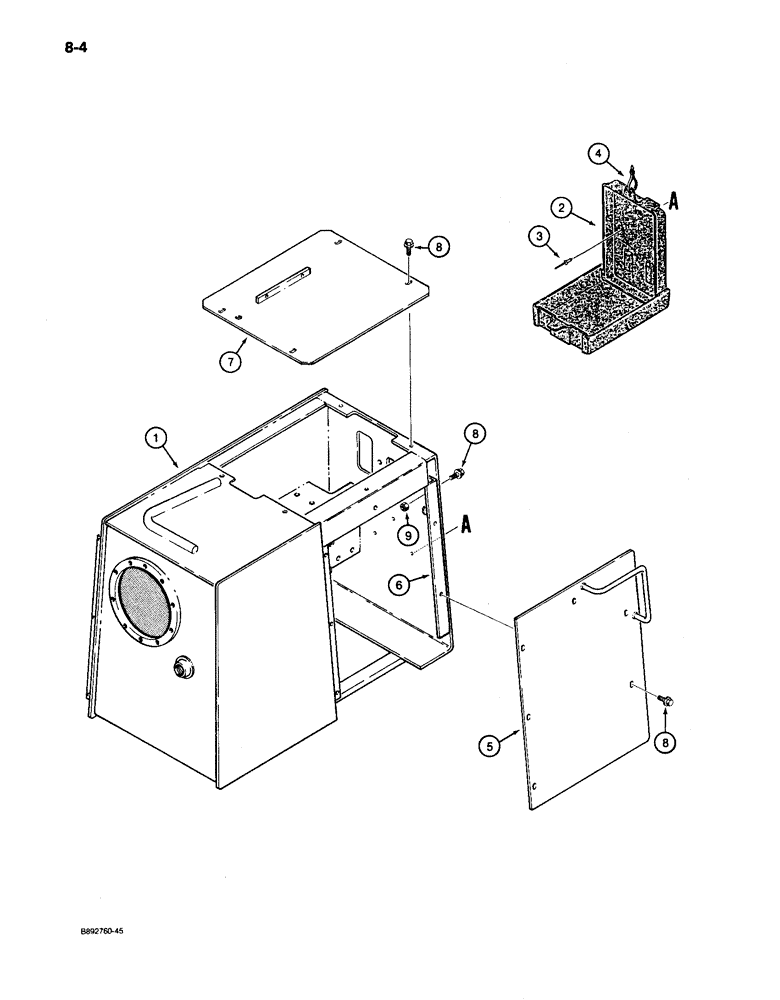

Запчасти Case 650 (8-04) - HYDRAULIC RESERVOIR COVERS AND OPERATORS MANUAL BOX (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 8-2 for part number and other related parts, Includes: Ref. 2 - 4

1шт.

2

R46464

CASE

BOX - operators manual

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 x 17/32 inch

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

R42561

LARGE PLATE

COVER - outer side, with handrail

1шт.

6

R42559

BRACKET

- side cover mounting

1шт.

7

R51899

COVER

- top, includes various decals, (see decal Figure 9-46 and 9-48)

1шт.

8

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

13шт.

9

425-106

NUT,3/8"-16, Cl 5

3шт.
