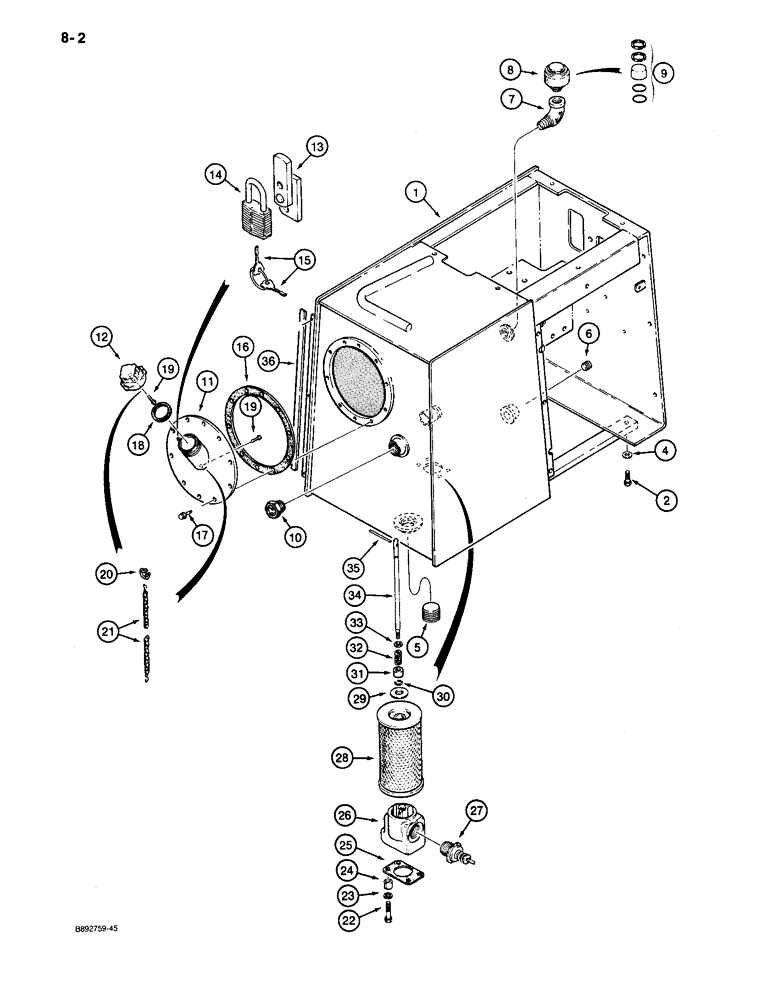

Запчасти Case 650 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

R57395

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic, includes operator's manual box (see Figure 8-4) and various decals (see decal Figure 9-46 and 9-48)

1шт.

2

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

4шт.

4

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32, hardened

4шт.

5

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- hex socket, 1-1/4 inch PT, drain

1шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

8

R42714

BREATHER

- hydraulic reservoir, Includes: Ref. 9

1шт.

9

N6475

SET

KIT - breather, includes element, 2 O-rings, and 2 snap rings

1шт.

10

L106452

GAUGE

- sight, hydraulic reservoir

1шт.

R51335

LARGE PLATE

COVER ASSEMBLY - hydraulic reservoir, rear, with filler tube, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - hydraulic reservoir

1шт.

12

R46929

CAP

- filler

1шт.

13

R46704

BRACKET

TAB - locking, filler cap

1шт.

14

D93753

PADLOCK

- hydraulic reservoir cap, includes keys, Includes: Ref. 15

1шт.

15

R29555

KEY

- for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

16

R46621

GASKET

- rear cover

1шт.

17

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

10шт.

18

R46984

GASKET

- filler cap

1шт.

19

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- drive, round head, No. 12 x 3/4 inch

2шт.

20

R48634

FASTENER

HOOK - chain

1шт.

21

R47786

CHAIN (CE)

CHAIN - filler cap

1шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

24

T53868

BUSHING

SPACER - filter block mounting

2шт.

25

R27324

GASKET

- filter

1шт.

26

R36277

BLOCK ASSY.

BLOCK - filter

1шт.

27

R27525

VALVE

- bypass, filter

1шт.

R51643

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - flat, element

1шт.

30

22824R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

31

R56556

HOLDER

RETAINER - spring

1шт.

32

F61200

SPRING

- element

1шт.

33

195-2052

WASHER,17/32" x 1 1/8" x .180"

- flat, 17/32 x 1-1/8 x 3/16 inch

1шт.

34

R56557

STEM

ROD - retaining, element

1шт.

35

135-815

GROOVED PIN,5/16" x 3", Type E, Hardened

PIN, GROOVED, 5/16" x 3", Type E, Hardened

1шт.

36

R56995

PROTECTION STRIP

PAD - bumper, door, 3 x 16 x 515 mm

1шт.
