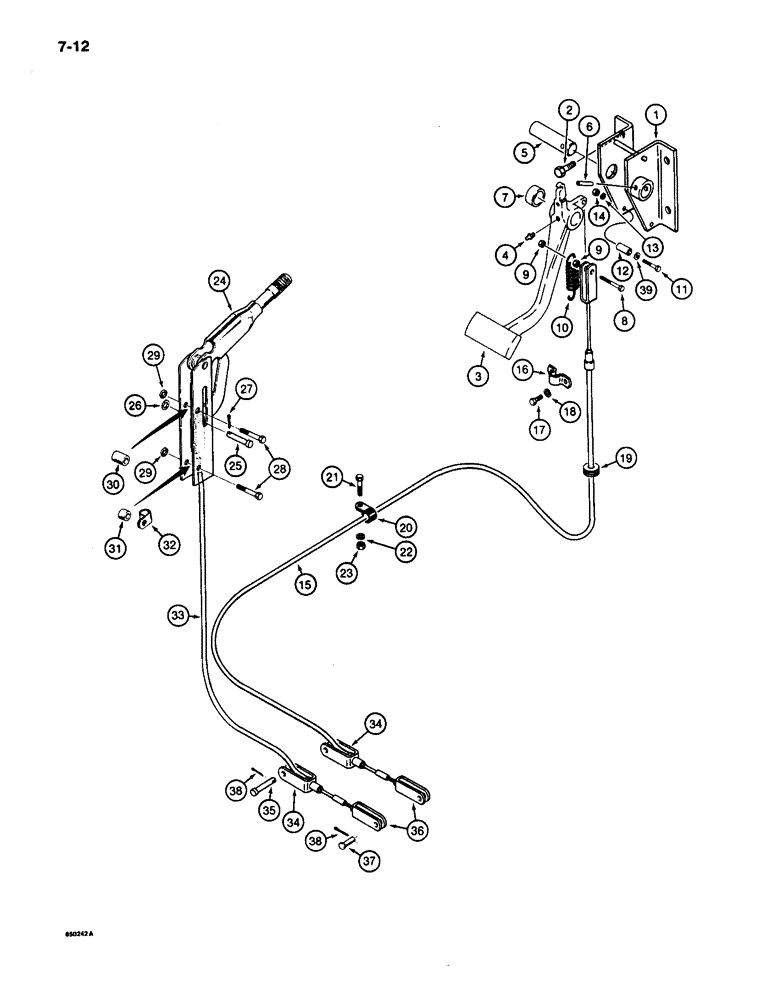

Запчасти Case 650 (7-12) - PARKING BRAKE (07) - BRAKES

1

R51562

SUPPORT

BRACKET - foot pedal and spring mounting

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

3

R51498

PEDAL

- parking brake

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

5

R51510

SHAFT

- pedal

1шт.

6

138-2016

PIN,1/4" x 1 7/8", Coiled

1шт.

7

R51509

SPACER

- brake pedal, LH

1шт.

8

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

Spring, Upper Hex, 5/16"-18 x 1 3/4", G5, Full Thd

1шт.

9

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

10

D120911

SPRING

- foot pedal

1шт.

11

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Spring retaining, lower Hex, 1/4"-20 x 1 1/2", G5

1шт.

12

H297432

SPACER

- lower spring retaining bolt

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

15

R51580

CABLE

- foot pedal to brake adjusters on transmission

1шт.

16

R26118

CLAMP

- foot, Serial Range: cable-firewall

1шт.

17

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- foot cable through firewall

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- foot cable to engine frame with brake supply tubes

1шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

D40687

LEVER

ASSEMBLY - control, parking brake, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

LEVER - control, praking brake

1шт.

25

D42458

PIN

- clevis, cable to control lever

1шт.

26

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

1шт.

27

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

28

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

D40685

SPACER

- long, upper

1шт.

31

D30863

TUBE

SPACER - short, lower

1шт.

32

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- P-style, hand lever cable

1шт.

33

R53521

CABLE

- hand lever to brake adjusters on transmission

1шт.

34

R51613

CLEVIS

- cable to brake adjuster lever, LH

2шт.

35

S10754

LINCH PIN

PIN - clevis, LH clevises

1шт.

36

R51621

CLEVIS

- cable to brake adjuster lever, RH

2шт.

37

H45096

SPLIT PIN/SAFETY PIN

PIN - clevis, RH clevises

1шт.

38

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

39

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, use with lower spring retaining bolt

1шт.
