Запчасти Case 650 (7-04) - POWER BRAKE HYDRAULIC LINES, MASTER CYLINDERS TO TRANSMISSION CONTROL VALVE (07) - BRAKES

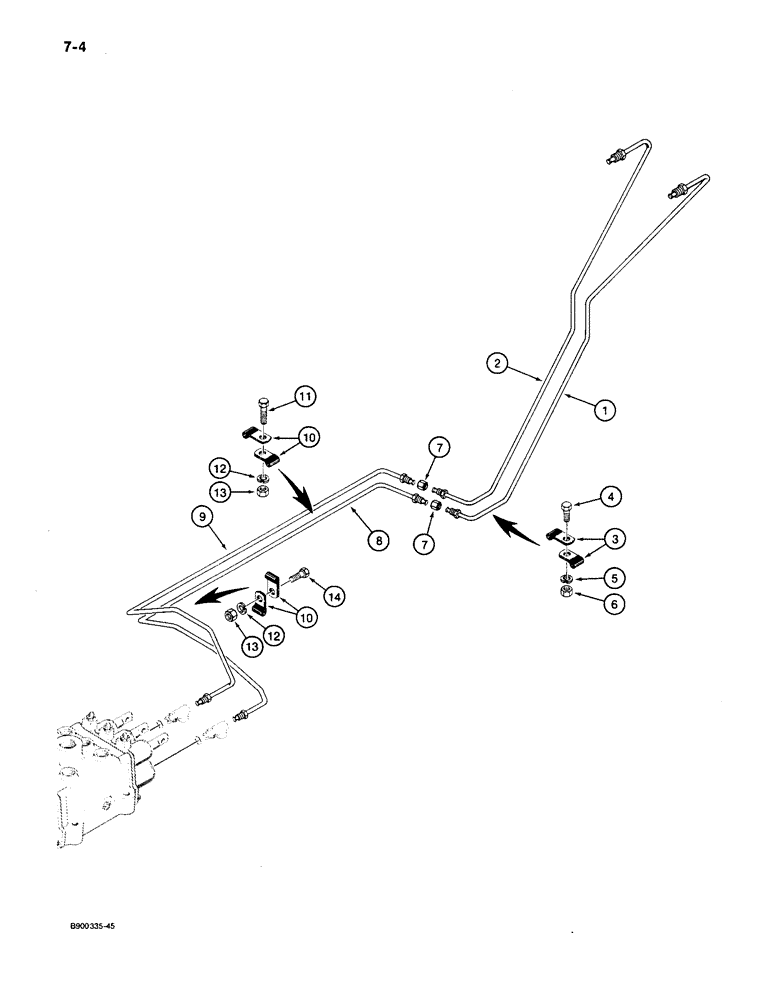

Схема запчастей Case 650 - (7-04) - POWER BRAKE HYDRAULIC LINES, MASTER CYLINDERS TO TRANSMISSION CONTROL VALVE (07) - BRAKES
12
5
13
9
14
13
1
7
10
11
2
12
7
8
6
10
4
3

Артикул

Название

Примечание

Количество

1

R57626

TUBE,7.9 mm OD

- from master brake cylinder, right-hand

1шт.

2

R57624

TUBE,7.9 mm OD

- from master brake cylinder, left-hand

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tubes

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

222-1054

HYD CONNECTOR,5/16" Inv Fl

CONNECTOR - straight, 1/2-20 inch inverted flare

2шт.

8

R57630

TUBE,7.9 mm OD

- to transmission control valve, right-hand

1шт.

9

R57628

TUBE,7.9 mm OD

- to transmission control valve, left-hand

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tubes to engine frame

4шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

Выбрано товаров: 14
