Запчасти Case 650 (6-46) - TRANSMISSION CONTROL TOWER, HEEL PLATE, AND LOCKUP (06) - POWER TRAIN

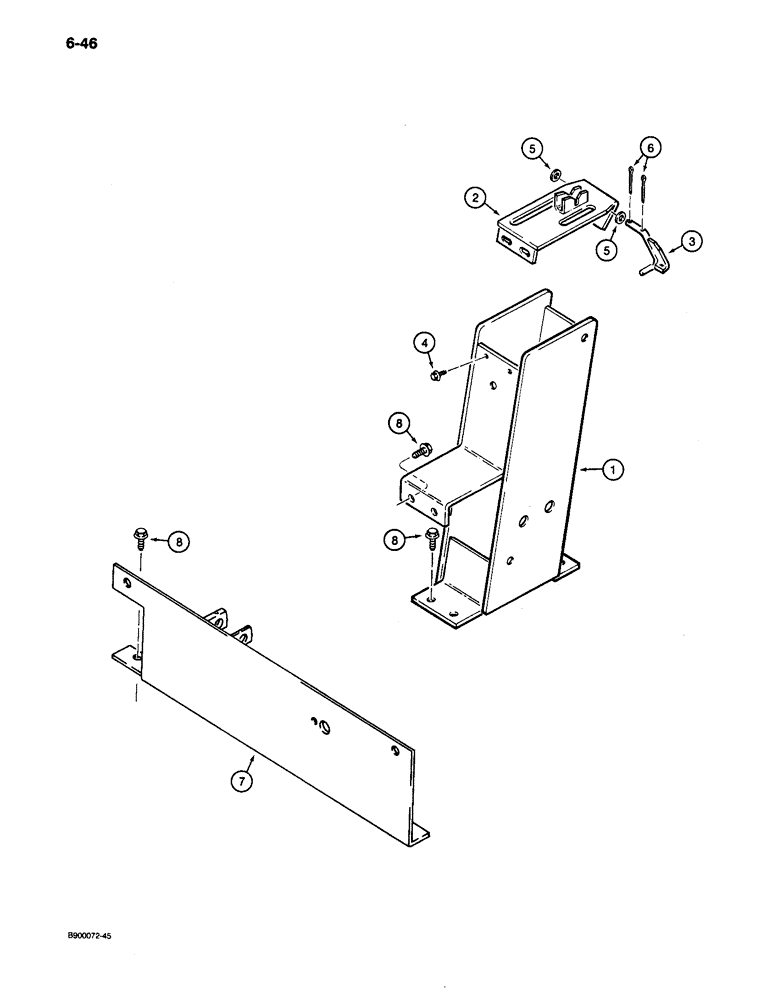

Схема запчастей Case 650 - (6-46) - TRANSMISSION CONTROL TOWER, HEEL PLATE, AND LOCKUP (06) - POWER TRAIN
8
8
8
5
3
4
1
2
7
5
6

Артикул

Название

Примечание

Количество

1

R32049

SUPPORT ASSY.

TOWER - transmission control

1шт.

2

R32054

SUPPORT

COVER - control tower

1шт.

3

R36318

LOCK

LATCH - lock

1шт.

4

121-20

BOLT,Hex Flg, 1/4"-20 x 1/2", Serr

2шт.

5

95-31027

WASHER,1/4"

- flat, 17/64 x 5/8 x 3/64 inch

2шт.

6

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

7

R54235

LARGE PLATE

PLATE - heel, includes 321-2392 Master Disconnect decal, see Figure 9-48 for decal

1шт.

8

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.

Выбрано товаров: 8
