Запчасти Case 650 (6-44) - TRANSMISSION CONTROLS (06) - POWER TRAIN

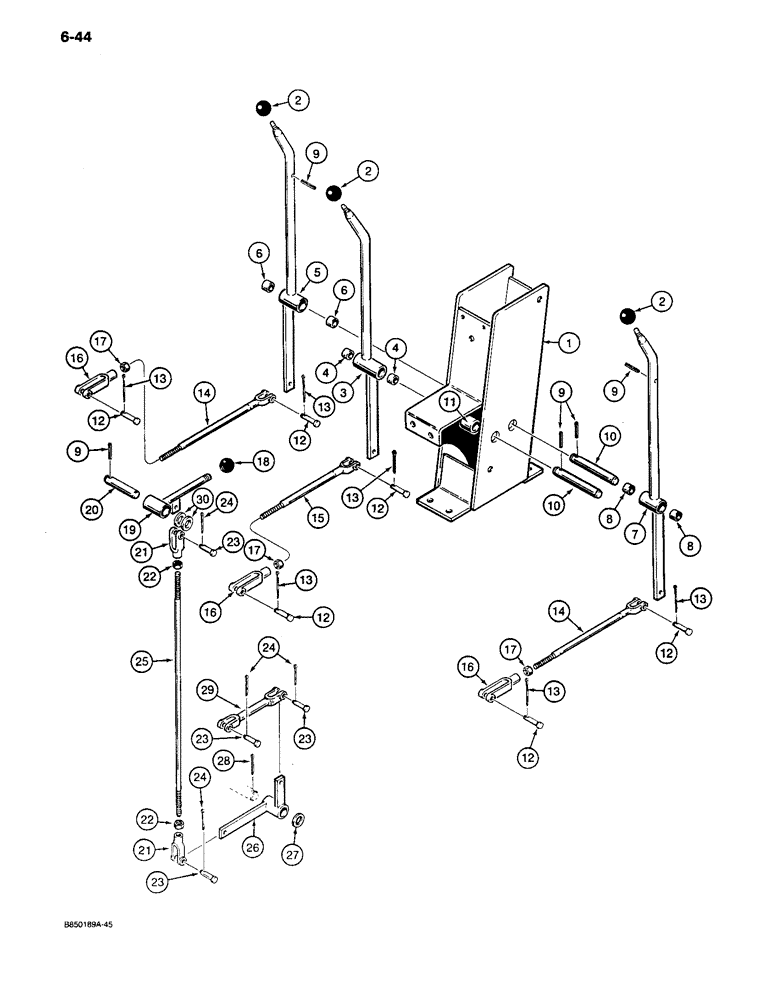

Схема запчастей Case 650 - (6-44) - TRANSMISSION CONTROLS (06) - POWER TRAIN
12
9
27
13
25
13
23
18
14
5
26
6
12
13
9
29
17
3
15
23
13
2
12
1
12
13
12
12
23
16
4
9
7
17
24
24
2
4
8
28
2
23
21
19
14
6
11
21
13
9
10
22
22
10
20
24
16
8
30
16
14

Артикул

Название

Примечание

Количество

1

R32049

SUPPORT ASSY.

TOWER - transmission control, for tower mounting and heel plate, see Figure 6-46

1шт.

2

70213

KNOB

- control lever

3шт.

3

R32065

LEVER

- forward-reverse control, rear mounting, Includes: Ref. 4

1шт.

4

R31144

BUSHING

- control lever

2шт.

5

R32057

LEVER

- left-hand, high-low control, forward mounting, Includes: Ref. 6

1шт.

6

R31144

BUSHING

- control lever

2шт.

7

R32058

LEVER

- right-hand, high-low control, forward mounting, Includes: Ref. 8

1шт.

8

R31144

BUSHING

- control lever

2шт.

9

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

5шт.

10

R32064

SHAFT

- control levers

2шт.

11

R32884

SPACER

- forward-reverse control lever

1шт.

12

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

6шт.

13

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

6шт.

14

R34012

ROD

- high-low

2шт.

15

R34011

ROD

- forward-reverse

1шт.

16

H44198

YOKE

CLEVIS - 5/16 NF

3шт.

17

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

3шт.

18

D49996

KNOB

- control lever, dual range

1шт.

19

R32074

LEVER

- dual range control

1шт.

20

D29768

SHAFT

- control lever, dual range

1шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

light 3/8"-24

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

23

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

24

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

4шт.

25

R32078

ROD

- range control lever

1шт.

26

R32071

LEVER

BELLCRANK - dual range control

1шт.

27

95-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

1шт.

28

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

29

D30319

ROD

- range control

1шт.

30

D44330

SHIM,.031" Thk

Dual range control lever .031" Thk

1шт.

Выбрано товаров: 30
