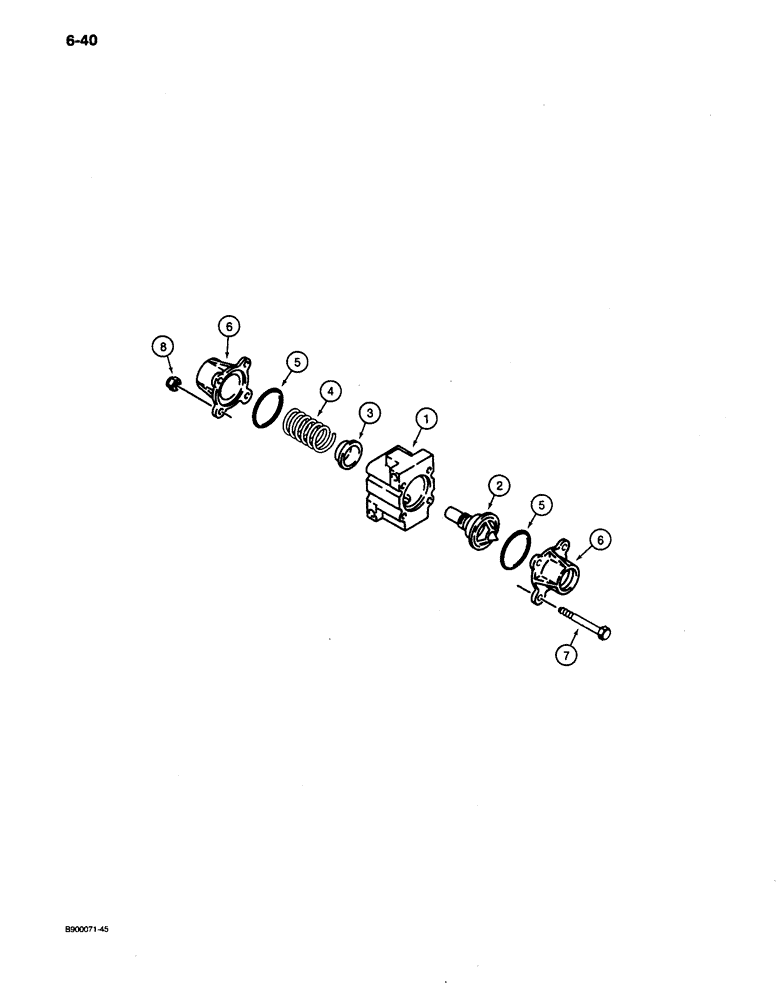

Запчасти Case 650 (6-40) - THERMAL BYPASS VALVE ASSEMBLY (06) - POWER TRAIN

R51141

THERMOSTAT

VALVE ASSEMBLY - bypass, thermostat, cooling circuit, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - bypass valve

1шт.

2

N9802

THERMOSTAT

- bypass element

1шт.

3

N9803

VALVE POPPET

POPPET - valve seal

1шт.

4

N9804

SPRING

- poppet

1шт.

5

S5627

O-RING,2.114" ID x 2.254" OD x 0.07"

SEAL - end caps

2шт.

6

N9805

CAP

- end, bypass valve ports

2шт.

Ref. 6 - N.S.S. (This End Cap is obsolete. For Service, you must order the complete Valve Assy.

1шт.

7

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

4шт.

8

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4 inch NC

4шт.
