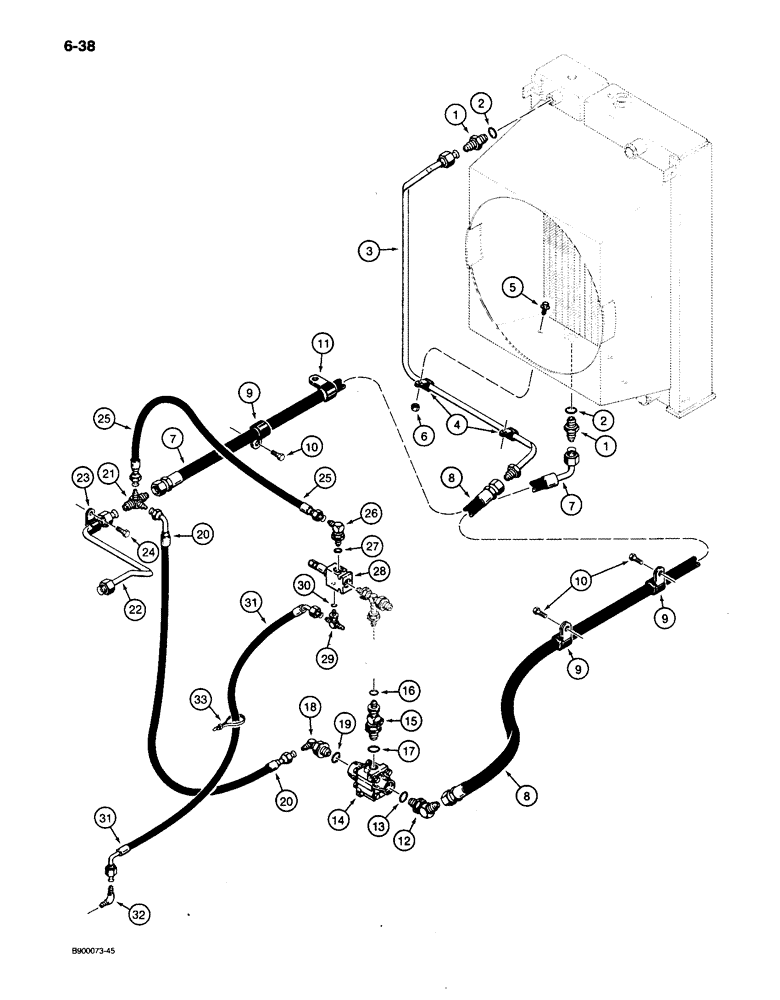

Запчасти Case 650 (6-38) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (06) - POWER TRAIN

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 2

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

R57087

TUBE,19.04 mm OD

- to upper port of radiator

1шт.

4

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium closed, 3/4 inch diameter

2шт.

5

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

R56466

HOSE ASSY.

HOSE - 1481 mm long, from lower port of radiator

1шт.

8

R57341

HOSE

- 1200 mm long, from bypass valve to radiator tube

1шт.

9

R43738

CLAMP

- hose

3шт.

10

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

3шт.

11

D34033

CLAMP

- hose

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

R51141

THERMOSTAT

VALVE ASSEMBLY - bypass, parts list Figure 6-40

1шт.

15

R57336

TEE,1-1/16" - 12 ORB x 3/4" - 16 ORB x 1/2" NPT

- special, at torque converter and bypass valve, Includes: Ref. 16 and 17

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adj, 3/4-16 flare x 1-1/16-12 inch O-ring, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

R57486

HOSE

- 700 mm long, bypass, Serial Range: valve-tee

1шт.

21

R57479

FITTING

MANIFOLD - 4-way, special

1шт.

22

R57484

TUBE,19.04 mm OD

- bypass valve to transmission

1шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- 3/4 inch diameter

1шт.

24

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

25

R57487

HOSE

- 535 mm long, tee to pressure sensing valve

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

R57597

VALVE

ASSEMBLY - pressure sensing, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

29

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

- 7/16-20 adj O-ring boss branch x 9/16-18 inch flare, Includes: Ref. 30

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

31

R34863

HOSE

- 35 inch long, pressure sensing, Serial Range: valve-transmission

1шт.

32

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.
