Запчасти Case 650 (6-36) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

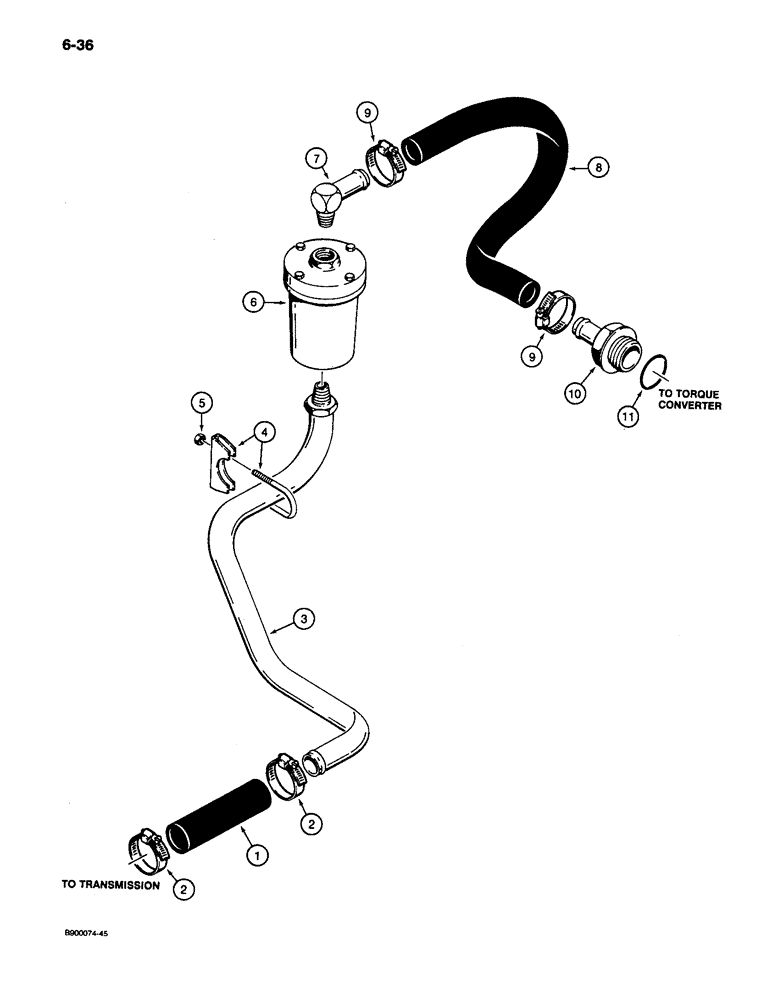

Схема запчастей Case 650 - (6-36) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN
8
6
9
9
5
7
3
2
2
11
10
4
1

Артикул

Название

Примечание

Количество

1

R46690

HOSE - 1-1/4 x 1-3/4 x 6 inch long, cut to required length from D33365 bulk hose, see below

1шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

3

R57451

TUBE,31.75 mm OD

- suction, transmission to suction filter

1шт.

4

L45901

CLAMP

-, Serial Range: tube-frame

1шт.

5

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

D35144

FILTER

FILTER ASSEMBLY - transmission oil, suction line, parts list Figure 6-42

1шт.

7

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1 inch stem end x PT

1шт.

8

D28238

HOSE

- 1 x 1-1/2 x 18 inch long, suction filter to torque converter

1шт.

9

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

10

R57462

ADAPTER

- special, at torque converter, Includes: Ref. 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

D33365

HOSE

- 1-1/4 x 1-3/4 x 18-1/2 inch long, bulk

1шт.

Выбрано товаров: 12
