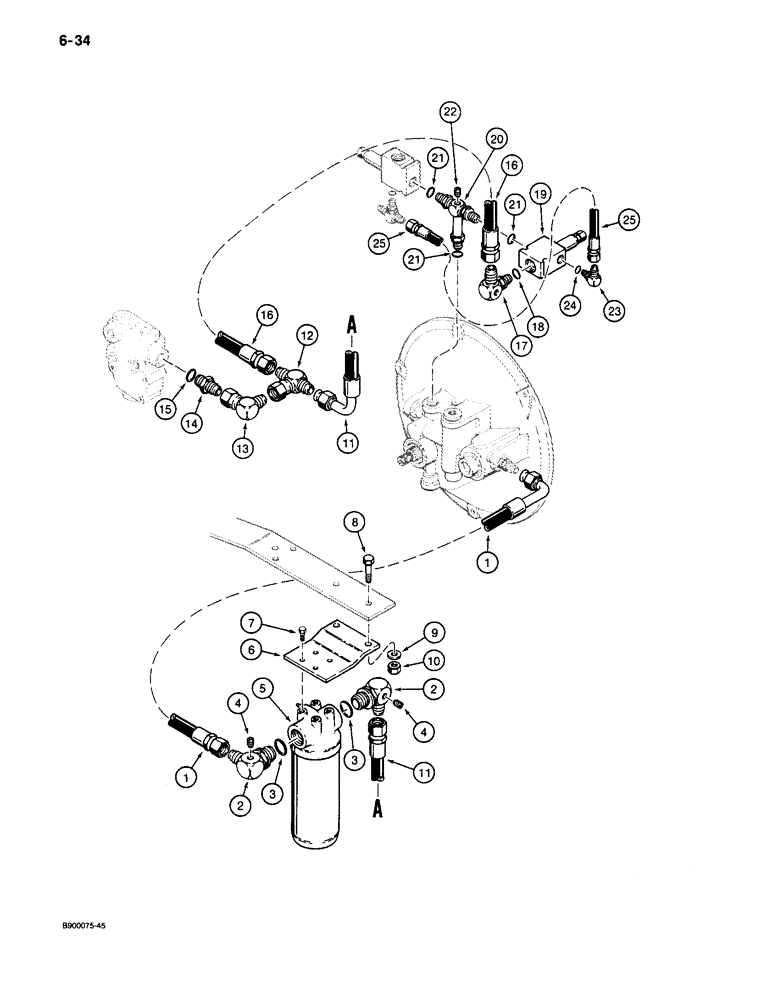

Запчасти Case 650 (6-34) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

R56466

HOSE ASSY.

HOSE - 1481 mm long, torque converter filter

1шт.

2

R49557

FITTING

ELBOW - 90 degree, with check port, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

5

R48993

FILTER

ASSEMBLY - transmission oil, parts list Figure 6-42

1шт.

6

R49362

SUPPORT

BRACKET - filter mounting

1шт.

7

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

8

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8

2шт.

9

R24323

WASHER

- flat, 13.5 x 25 x 4.5 mm, hardened

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

R50075

HOSE

- 13 inch long, filter to modulator valve on transmission

1шт.

12

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, 1-1/16-12 inch swivel straight thread branch x flare x flare

1шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x female swivel

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H224147

HYDRAULIC HOSE,19.05 mm ID x 1320.80 mm, SAE 100R1

Modulator Valve to Relief Valve 19.05 mm ID x 1320.80 mm, SAE 100R1

1шт.

17

R57589

FITTING

ELBOW - special, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

R57582

VALVE

ASSEMBLY - relief, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

20

R57585

FITTING

TEE - special, at torque converter, see figure 6-38 for pressure sensing valve, Includes: Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

23

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 deg adj, 9/16-18 flare x 7/16-20 inch O-ring boss, Incl. Ref. 24

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , Relief Valve to Pressure Sensing Valve 0.38" ID x 18.75", SAE 100R1

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.
