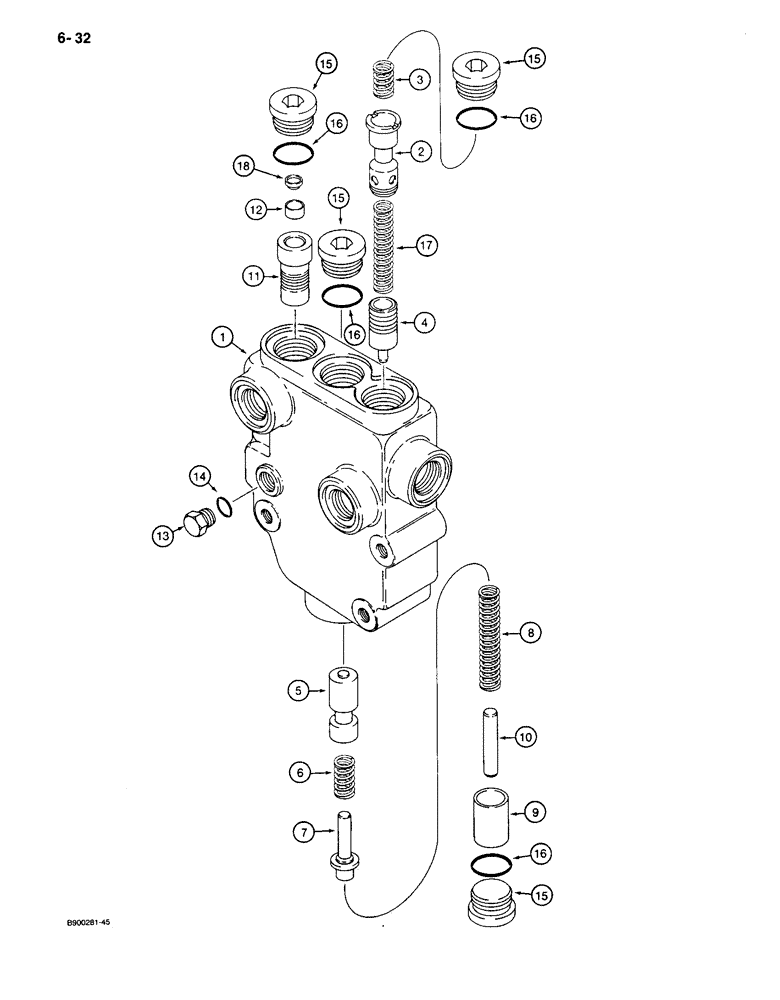

Запчасти Case 650 (6-32) - TRANSMISSION MODULATOR VALVE ASSEMBLY (06) - POWER TRAIN

1986574C1

DISTRIBUTOR

VALVE ASSEMBLY - modulator, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

G110503

SPOOL

- track modulation

1шт.

3

1986559C1

SPRING

- track spool

1шт.

4

G106555

VALVE POPPET

POPPET - unloading, track spool

1шт.

5

G107532

SPOOL

- modulator

1шт.

6

1986557C1

SPRING

- modulator spool, minimum

1шт.

1986571C1 is the assembly consisting of Ref. 11, 12, and 18

1шт.

7

G107531

GUIDE

- spring

1шт.

8

1346480C1

SPRING

- modulation

1шт.

9

G107530

PISTON

- modulator

1шт.

10

G107529

PIN

- stop

1шт.

11

1986569C1

SPOOL

- unloading

1шт.

12

1986570C1

PLUG

- orifice

1шт.

13

9672438

PLUG,7/16" - 20 ORB

Test port, Incl. Ref. 14 Hex Hd, 7/16"-20 ORB

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 16 Hex Soc, 1 1/16"-12 ORB

4шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

1986558C1

SPRING

- track unloading

1шт.

18

1976955C1

FILTER SCREEN

SCREEN, FILTER

1шт.
