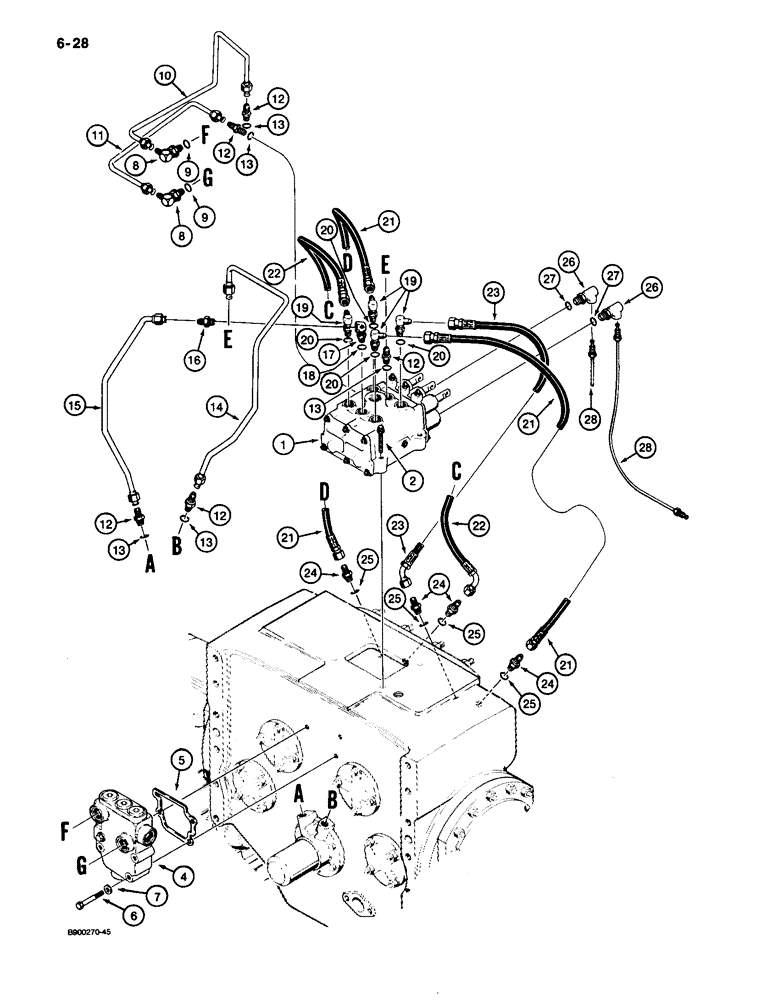

Запчасти Case 650 (6-28) - TRANSMISSION CONTROL VALVE HYDRAULIC LINES (06) - POWER TRAIN

1

1343750C1

VALVE

ASSEMBLY - transmission control, parts list Figure 6-30

1шт.

2

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - Ferry head, 3/8 NC x 2 inch, grade 8

4шт.

3

1986527C1

GASKET

- control valve to transmission housing, not shown

1шт.

4

1986574C1

DISTRIBUTOR

VALVE ASSEMBLY - modulator, parts list Figure 6-32

1шт.

5

G105635

GASKET

GASKET - modulator valve

1шт.

6

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

7

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

3шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G108277

HYD TUBE

TUBE - forward-reverse, modulator valve to the top of the control valve

1шт.

11

G108278

HYD TUBE,0.5" OD

TUBE - high-low, modulator valve to the left-hand side of the control valve

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 13

5шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

G108275

TUBE,12.7 mm OD

- forward, right-hand

1шт.

15

G108276

TUBE,0.5" OD

- reverse, left-hand

1шт.

16

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

17

G107178

ELBOW

- 90 degree, adjustable, with tapped hole for backup alarm pressure switch connection, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 20

4шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

G108248

HOSE

- 17 inch long, right-hand low clutch and left-hand high clutch

2шт.

22

G108247

HOSE

- 22 inch long, left-hand low clutch

1шт.

23

G108060

HOSE

- 14 inch long, right-hand high clutch

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 25

4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

1348882C1

FITTING

TEE - special, at control valve, Includes: Ref. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

1348883C1

TUBE

- tee at control valve to brake cylinder

2шт.
