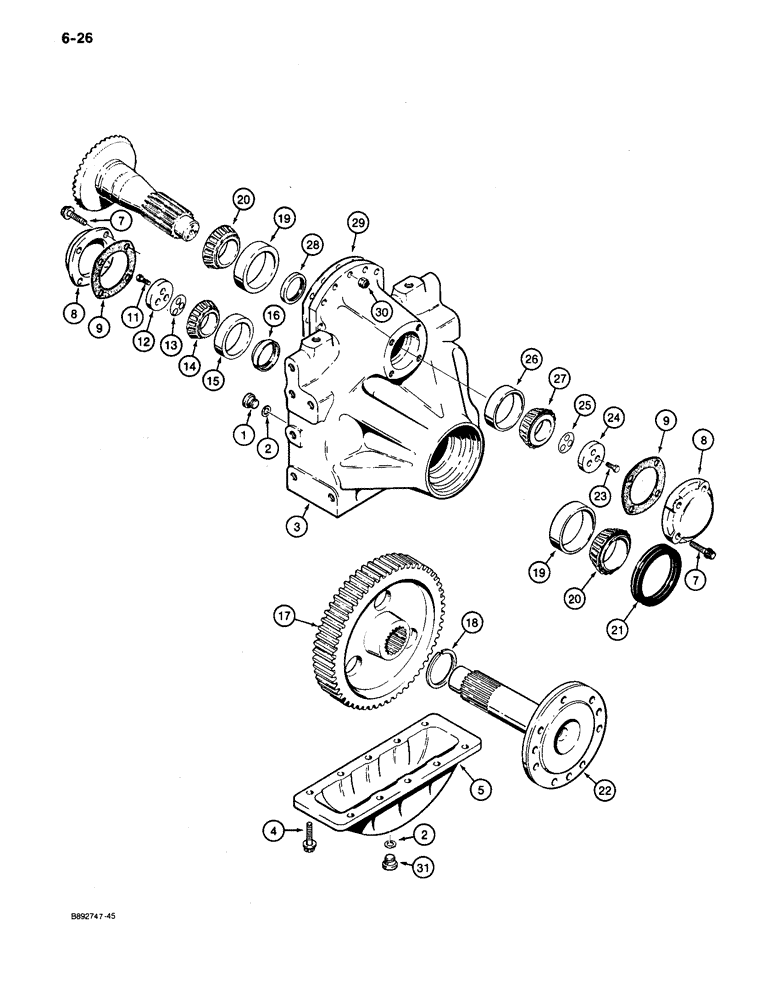

Запчасти Case 650 (6-26) - TRANSMISSION FINAL DRIVE (06) - POWER TRAIN

G107164

TRANSMISSION

DRIVE ASSEMBLY - final, Includes: Ref. 1 - 31

2шт.

1

A50014

PLUG

- fill

1шт.

2

G102141

SEALING WASHER

WASHER - copper, drain and fill plugs

2шт.

3

G101600

HOUSING

- final drive assembly

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2 NC x 1-1/2 inch

10шт.

5

G101601

COVER

PAN - bottom, see item 6 for, Serial Range: sealant-housing

1шт.

6

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, bottom pan to housing, not shown

1шт.

7

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry head, 1/2 NC x 1 inch

8шт.

8

G105822

COVER ASSY

COVER - shafts

2шт.

9

G101598

GASKET

- cover

2шт.

11

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

use with Loctite 242 Hex, 9/16"-18 x 1 1/4", G8, Full Thd

3шт.

12

G102107

PLATE

- bearing retaining, final drive shaft

1шт.

13

R21741

SHIM,.005" Thk

Plate .005" Thk

1шт.

13

R21742

SHIM,.007" Thk

Plate .007" Thk

1шт.

13

R21743

SHIM,.020" Thk

Plate .020" Thk

1шт.

14

630203C91

TAPERED BEARING

- tapered roller, final drive shaft, inner

1шт.

15

L35931

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

A50134

GEAR

- final drive

1шт.

18

G104968

SNAP RING,#325, 3.070, Ext

RING - retaining, gear

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing

2шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, final drive shaft, outer, and bevel gear, inner

2шт.

21

G101798

SEAL

- final drive shaft

1шт.

22

G106477

SHAFT

- final drive

1шт.

23

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

24

G102108

PLATE

- bearing retaining, bevel gear

1шт.

25

G100328

SHIM,.005" Thk

Plate .005" Thk

1шт.

25

G100329

SHIM,.007" Thk

Plate .007" Thk

1шт.

25

G100330

SHIM,.020" Thk

Plate .020" Thk

1шт.

26

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

27

895102C91

BEARING

- tapered roller, bevel gear, outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, housing, bevel gear

1шт.

29

A50199

SHIM,.003" Thk

(0.076 mm), Housing .003" Thk

1шт.

29

A50198

SHIM,.005" Thk

(0.127 mm), Housing .005" Thk

1шт.

30

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

14шт.

31

A50014

PLUG

- drain

1шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge

1шт.
