(6-18) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS

Запчасти Case 650 (6-18) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN

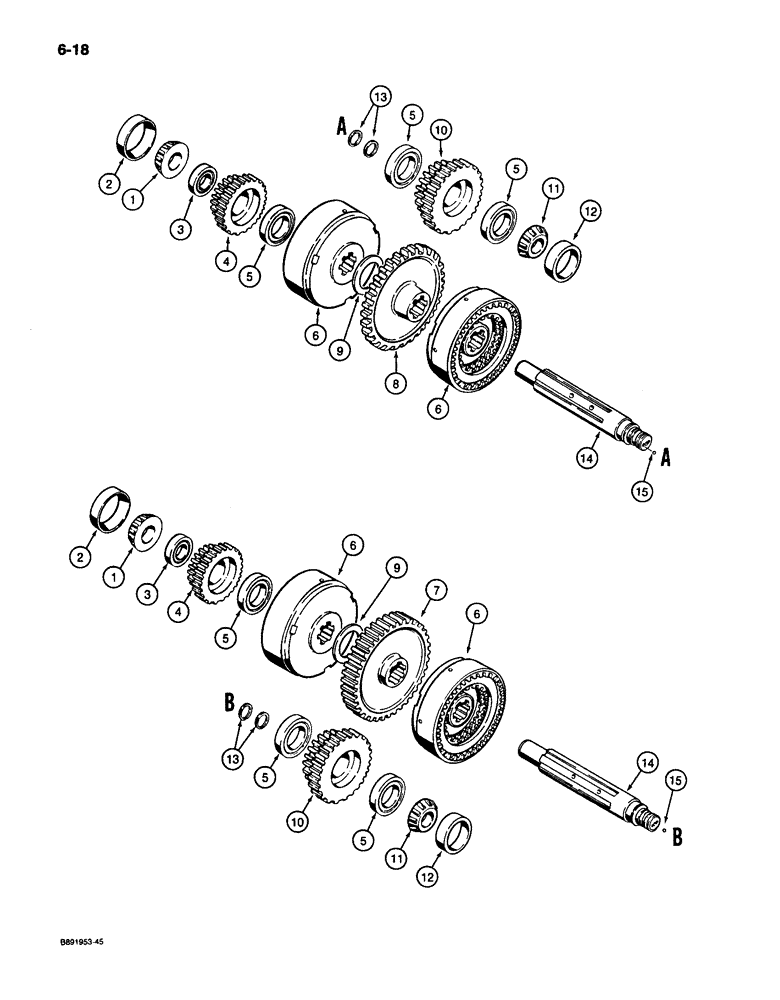

Схема запчастей Case 650 - (6-18) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN
2
5
12
1
13
8
15
5
6
5
6
9
3
2
14
4
10
6
9
10
11
4
12
14
5
5
6
3
11
5
7
15
13
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G100313

BEARING CONE,34.92mm ID x 20.64mm W

BEARING - tapered roller, clutch shaft, rear

2шт.

2

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.

3

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, rear

2шт.

4

A50574

SHAFT

GEAR - low clutch, rear

2шт.

5

G10418

BEARING, BALL

BEARING - ball, high clutch gear and front of low clutch gear

6шт.

6

G106702

CLUTCH ASSEMBLY

- high and low, parts list Figure 6-20

4шт.

7

NLS

NO LONGER SERVICED

- reverse, right-hand, 1-1/2 inch (38 mm) wide teeth

1шт.

8

A50511

GEAR

- forward, left-hand, 11/16 inch (17 mm) wide teeth

1шт.

9

A50668

SHIM,.032" Thk

Forward and reverse gears .032" Thk

2шт.

10

1981356C1

PINION

GEAR - high clutch, front, 29 teeth

2шт.

11

ST2069

TAPERED BEARING,1.7715" ID x 3.3475" OD x 0.9515"

BEARING - tapered roller, clutch shaft, front

2шт.

12

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing, front

2шт.

13

A50389

SEAL

- ring, shaft

4шт.

14

G100310

GEAR

SHAFT - high and low clutch, Includes: Ref. 15

2шт.

15

211-7

BALL,1/4" Dia

grade 200, chrome alloy steel 1/4" Dia

2шт.
