Артикул
Название
Примечание
Количество

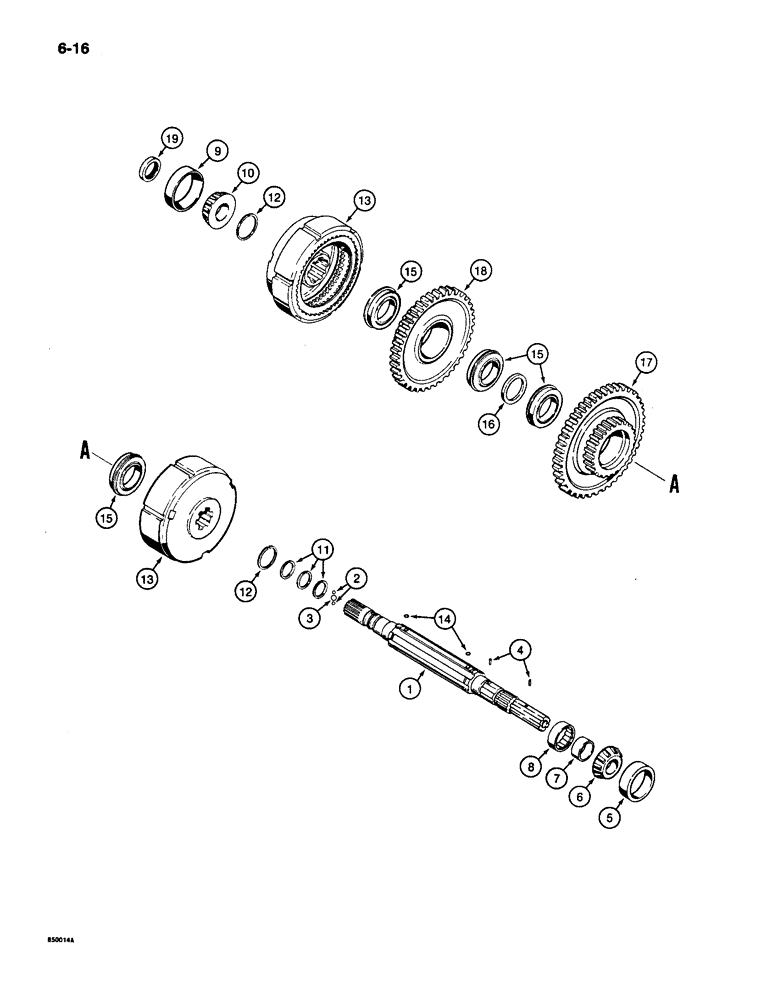

1
G109370
SHAFT
- main, Includes: Ref. 2 and 3
1шт.
2
211-7
BALL,1/4" Dia
grade 200, chrome alloy steel 1/4" Dia
2шт.
3
211-10
BALL
- 3/8 inch diameter, grade 200, chrome alloy steel
1шт.
4
138-68
LOCK PIN,5/32" x 7/16", Slotted
PIN, , Range gear 5/32" x 7/16", Slotted
2шт.
5
128242R1
BEARING CUP,76.225 mm OD x 23.863 mm
CUP - tapered roller bearing, front
1шт.
6
G106461
ROLLER BEARING,33.34mm ID x 28.78mm W
BEARING - tapered roller, main shaft, front
1шт.
7
G106696
BEARING,41.26mm ID x 50.77mm OD x 32mm W
RACE - inner, needle bearing
1шт.
8
H748111
NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W
BEARING - needle, main shaft
1шт.
9
G109317
BEARING CUP
CUP - tapered roller bearing, rear
1шт.
10
G109318
CONE
BEARING - tapered roller, main shaft, rear
1шт.
11
A51841
RING
SEAL - ring, main shaft, rear
3шт.
12
A50046
RING
- snap, clutch retaining
2шт.
13
G106701
CLUTCH ASSEMBLY
- forward and reverse, parts list Figure 6-22
2шт.
14
G107169
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
- clutch seal
4шт.
15
40027
BALL BEARING,49.99mm ID x 80mm OD x 16mm W
- ball, forward and reverse gears
4шт.
16
A50034
SPACER
- forward and reverse gears
1шт.
17
G106770
GEAR
- reverse, 56 teeth
1шт.
18
G106771
GEAR
- forward, 51 teeth
1шт.
19
A54107
OIL SEAL,38.1mm ID x 8mm Thk
- oil, main shaft, rear
1шт.
Выбрано товаров: 19
