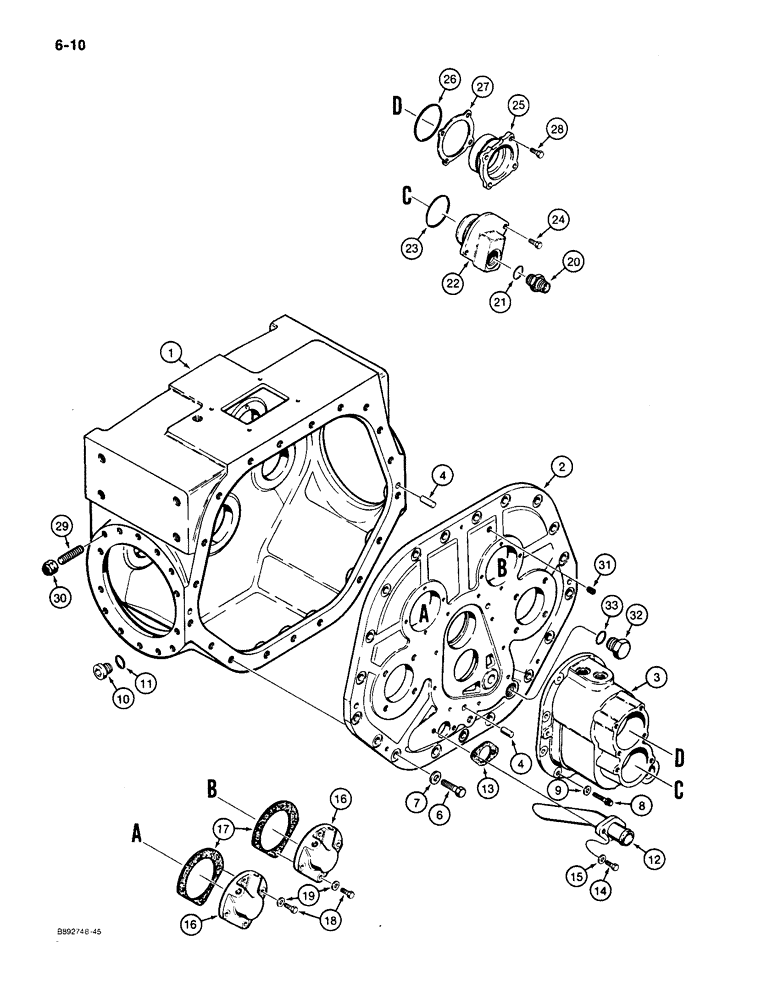

Запчасти Case 650 (6-10) - TRANSMISSION HOUSING AND FRONT COVERS (06) - POWER TRAIN

1342278C1

TRANSMISSION

ASSEMBLY - parts list Figures 6-10 - 6-32, 7-8 and 7-10

1шт.

1

1342262C1

HOUSING

- transmission, (For Production Only)

1шт.

Ref.1A - G109372 Housing, Transmission, (for Service)

1шт.

2

G109368

COVER

- housing

1шт.

3

G109367

HOUSING

- range gear

1шт.

4

A50247

DOWEL

PIN - dowel, locating, range gear housing and front cover

4шт.

5

REF

INSTRUCTION

SEALANT - Gasket Eliminator No. 504, front cover and range gear housing, not shown

1шт.

6

26-922

BOLT,Hex, 9/16" - 12 x 1-3/8", Gr 8

- hex, 9/16 NC x 1-3/8 inch, grade 8

19шт.

7

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 1/16 x 1-3/64 x 5/32 inch, hardened

19шт.

8

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8 NC x 1-1/4 inch, grade 8

9шт.

9

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

9шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Transmission drain, Incl. Ref. 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

A50110

TUBE

- suction

1шт.

13

1981223C1

GASKET

- suction tube

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

2шт.

16

G106948

COVER

- clutch shaft

2шт.

17

1981222C1

GASKET

- clutch shaft cover

2шт.

18

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

19

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

8шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, hydraulic oil return from radiator, Incl. Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

G107146

COVER

- main shaft

1шт.

23

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

- main shaft cover

1шт.

24

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

25

G105196

SLEEVE

- input shaft

1шт.

26

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- input shaft sleeve

1шт.

27

G105202

BLOCK

SHIM - sleeve, .003 inch thick

1шт.

27

G105203

BLOCK

SHIM - sleeve, .007 inch thick

1шт.

27

G107162

BLOCK

SHIM - sleeve, .020 inch thick

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

G100303

STUD

- 1/2 NC x 2-5/16 inch, final drive housing

24шт.

30

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

31

221-841

PLUG

- hex socket, 1/4 inch taper PT, front cover

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 33 Hex Hd, 1 1/16"-12 ORB

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube

1шт.

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge

1шт.
