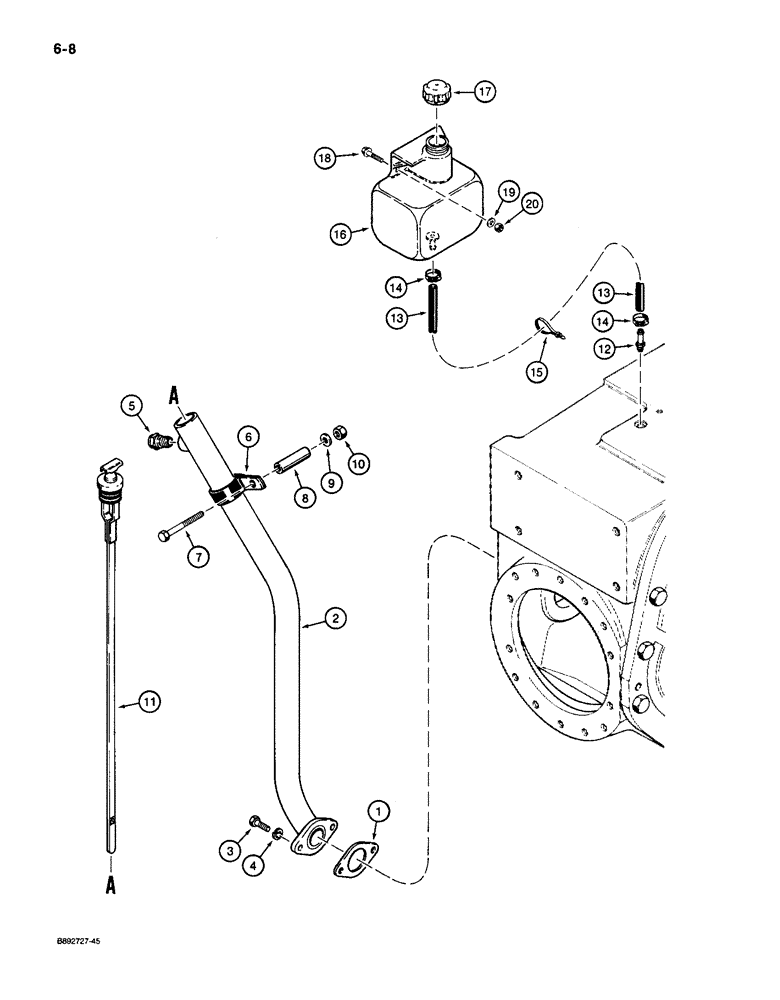

Запчасти Case 650 (6-08) - TRANSMISSION MOUNTING, DIPSTICK,, AND FLUID RECOVERY BOTTLE (06) - POWER TRAIN

1

R47073

GASKET

- dipstick tube

1шт.

2

R47760

TUBE,1.5" OD

- dipstick

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

D63543

BREATHER

- dipstick tube

1шт.

6

R50045

CLAMP

- dipstick tube

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

8

L49541

SPACER

- bolt

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

R47798

DIPSTICK

- transmission

1шт.

12

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 1/4 inch stem end x PT

1шт.

13

R55963

HOSE - 6 mm ID x 711 mm long, cut from A21561 bulk, see below, transmission breather

1шт.

See Figures 9-10 and 9-14 for the hardware to mount the transmission to main frame and seat and tank frame.

1шт.

14

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

R50467

RESERVOIR

BOTTLE - plastic, transmission fluid recovery

1шт.

17

R50468

CAP

CAP - recovery bottle

1шт.

18

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
