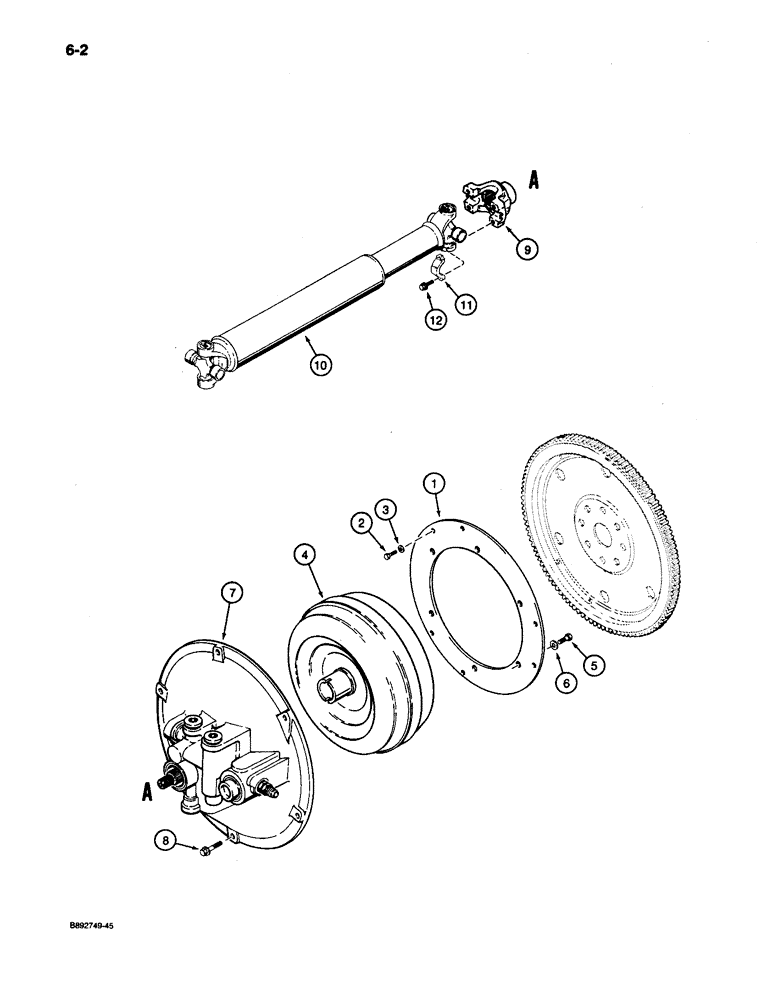

Запчасти Case 650 (6-02) - TORQUE CONVERTER, ADAPTER PLATE,, AND DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

A178706

PLATE

- adapter, torque converter to flywheel plate

1шт.

2

28-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

Adapter plate to flywheel plate Hex, 5/16"-24 x 5/8", G8, Full Thd

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- flat, hardened

6шт.

4

R57310

CONVERTER

- torque, component parts not serviced separately

1шт.

4

R57310R

REMAN-TORQUE CONVERT

Reman for New PN R57310

1шт.

4

R57310C

CORE-TORQUE CONVERTR

Return Number

1шт.

5

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 16 mm, adapter plate to torque converter

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

6шт.

7

1348821C1

CONVERTER

HOUSING ASSEMBLY - torque converter, parts list Figure 6-4

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - special, torque converter housing to flywheel housing

6шт.

9

1348826C1

CLEVIS

YOKE - torque converter housing to drive shaft, included with torque converter housing assembly

1шт.

10

R57361

STEERING SHAFT

SHAFT ASSEMBLY - drive, parts list Figure 6-6

1шт.

11

D137626

CLAMP,30.175mm D Clamping Pipe

STRAP - bearing

4шт.

12

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special

8шт.
