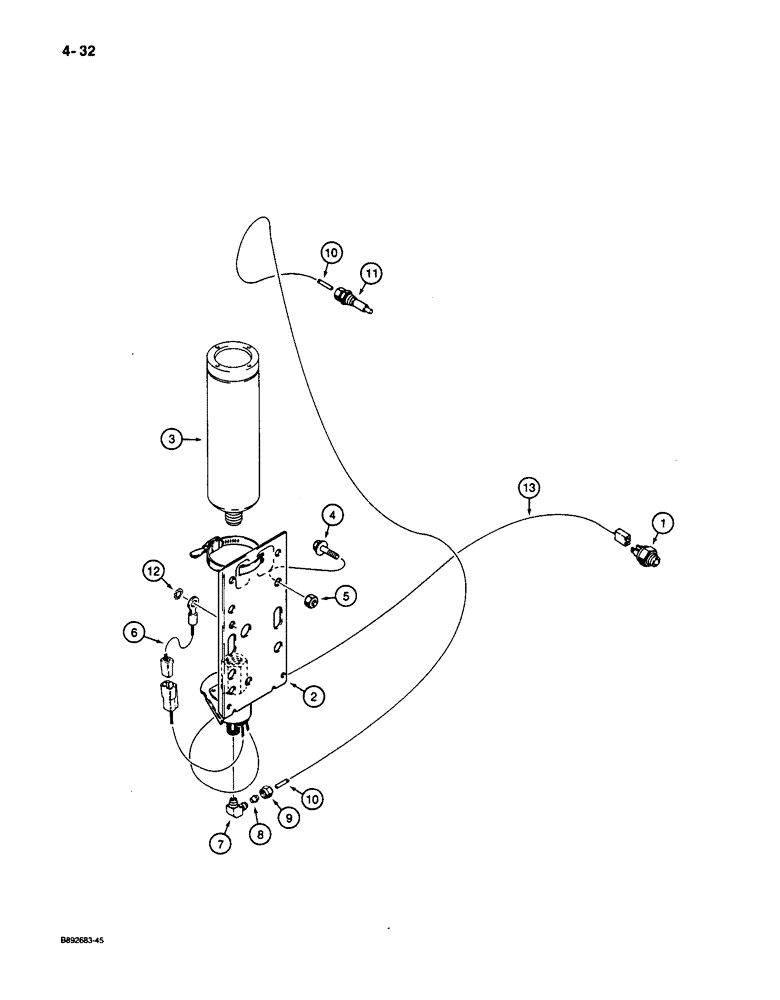

Запчасти Case 650 (4-32) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

A172117

SWITCH

THERMOCOUPLE - in engine cylinder head below intake manifold inlet tube

1шт.

2

A172116

VALVE

ASSEMBLY - starting fluid injection, with bracket, component parts not serviced separately, 3 cc injection volume, 12 volt

1шт.

3

A171940

CYLINDER

- starting fluid

1шт.

4

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

R51632

ELECTRICAL WIRE

WIRE - ground, to valve mounting bracket

1шт.

7

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 8 & 9 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

10

A149565

TUBE

- nylon, 15 inch (381 mm) long, cut from A138483 bulk, see below

1шт.

11

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start injection, component parts not serviced separately

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - external-internal tooth lock, 3/8 inch

1шт.

13

R57435

ELECTRICAL WIRE

WIRE - cold start, Serial Range: valve-thermocouple

1шт.

A138483

TUBE

- nylon, 99 inch (2515 mm) long

1шт.
