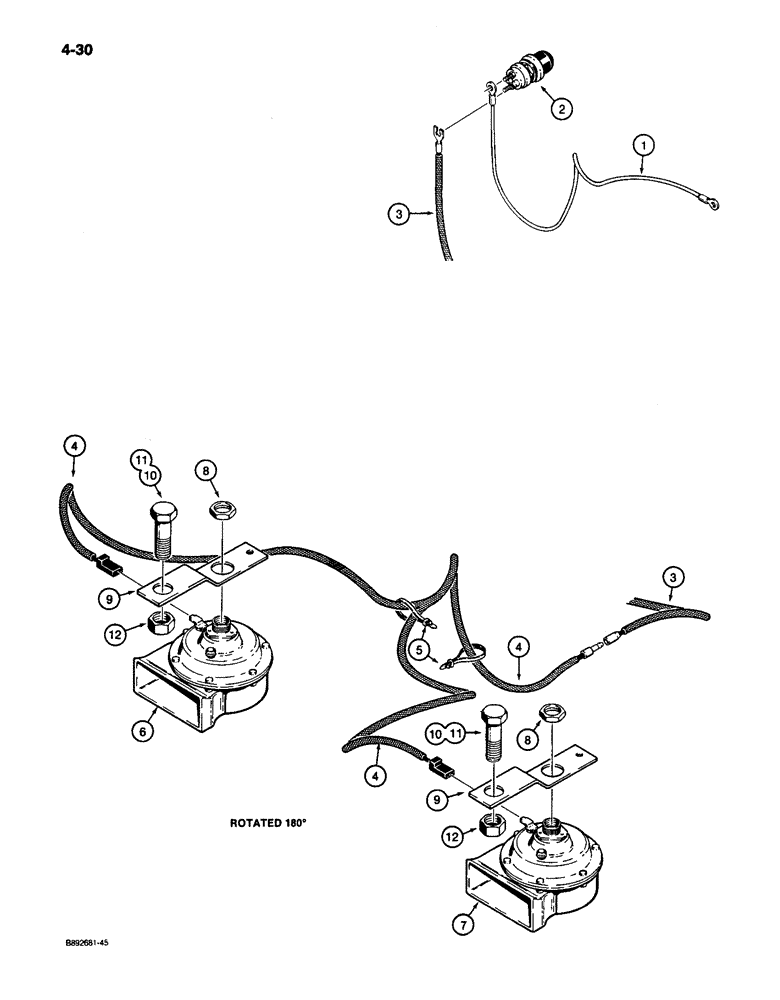

Запчасти Case 650 (4-30) - HORN (04) - ELECTRICAL SYSTEMS

1

F21342

ELECTRICAL WIRE

WIRE - push button to circuit breaker

1шт.

2

S241920

SWITCH

- push button, horn

1шт.

3

R56985

HARNESS

- front wiring, see Figure 4-16

1шт.

4

R46014

ELECTRICAL WIRE

WIRE - front wiring, Serial Range: harness-horns

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

S203189

HORN

- right-hand

1шт.

7

A19581

HORN

- left-hand

1шт.

8

L30866

LOCK NUT

- special

2шт.

9

R39064

BRACKET, SUPPORTING

BRACKET - horn mounting

2шт.

10

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Used without ROPS canopy brush guards Hex, 3/4"-10 x 1 1/2", G5

2шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Used with ROPS canopy brush guards

2шт.

12

129-108

NUT,3/4"-10, G5

2шт.
