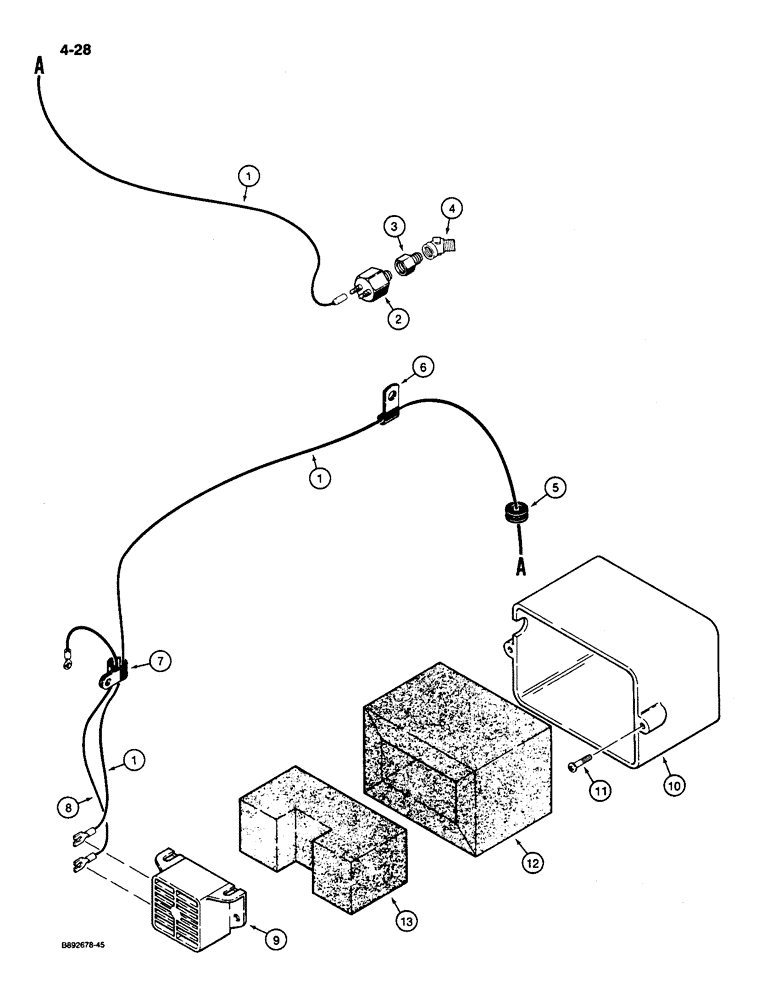

Запчасти Case 650 (4-28) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

R50296

HARNESS

- backup alarm to pressure switch at transmission control valve

1шт.

2

D139904

SWITCH

- pressure, at transmission control valve

1шт.

3

R52651

FITTING

SNUBBER - pressure switch

1шт.

4

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

5

A23870

GROMMET

- backup alarm, at seat mounting angle

1шт.

6

51200330

CLAMP

- backup alarm harness, uses shoulder bolt and washer from seat, Serial Range: belt-mount

1шт.

7

49838

CLAMP

- harness and ground wire, uses rear door hinge mounting hardware

1шт.

8

R50295

CABLE

WIRE - ground

1шт.

9

L112318

ALARM

- backup, bolts to rear access cover

1шт.

10

R50647

BOX

- plastic, backup alarm

1шт.

11

187-1308

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

SCREW - self-tapping, Phillips pan, 1/4 NC x 3/4 inch

2шт.

12

R50648

FOAM

SEAL - foam, backup alarm box

1шт.

13

R51815

PAD

- foam, backup alarm, 2 x 2-1/2 x 10 inch, cut a double thickness from R30870 bulk, see below

1шт.

R30870

PAD

- bulk, 54 x 72 x 1 inch (1372 x 1829 x 25 mm) thick

1шт.
