(4-26) - HALOGEN LAMP ASSEMBLY, MODELS WITH ROPS CANOPY

Запчасти Case 650 (4-26) - HALOGEN LAMP ASSEMBLY, MODELS WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS

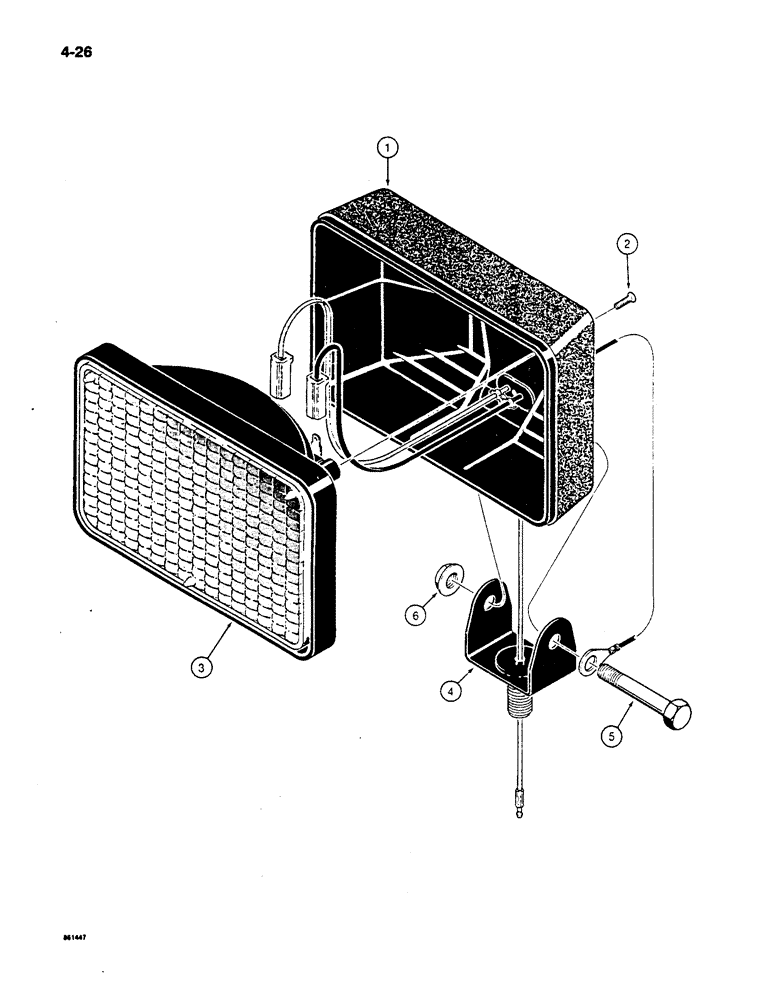

Схема запчастей Case 650 - (4-26) - HALOGEN LAMP ASSEMBLY, MODELS WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS
3
6
2
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F96838

LAMP

ASSEMBLY - halogen, Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - flat, self-tapping, No. 8-18 x 1/2 inch

2шт.

3

F45230

HEADLIGHT

BULB - sealed beam

1шт.

4

N8347

SUPPORT

BRACKET - lamp

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, flange type, special locking, 5/16 inch NC

1шт.
