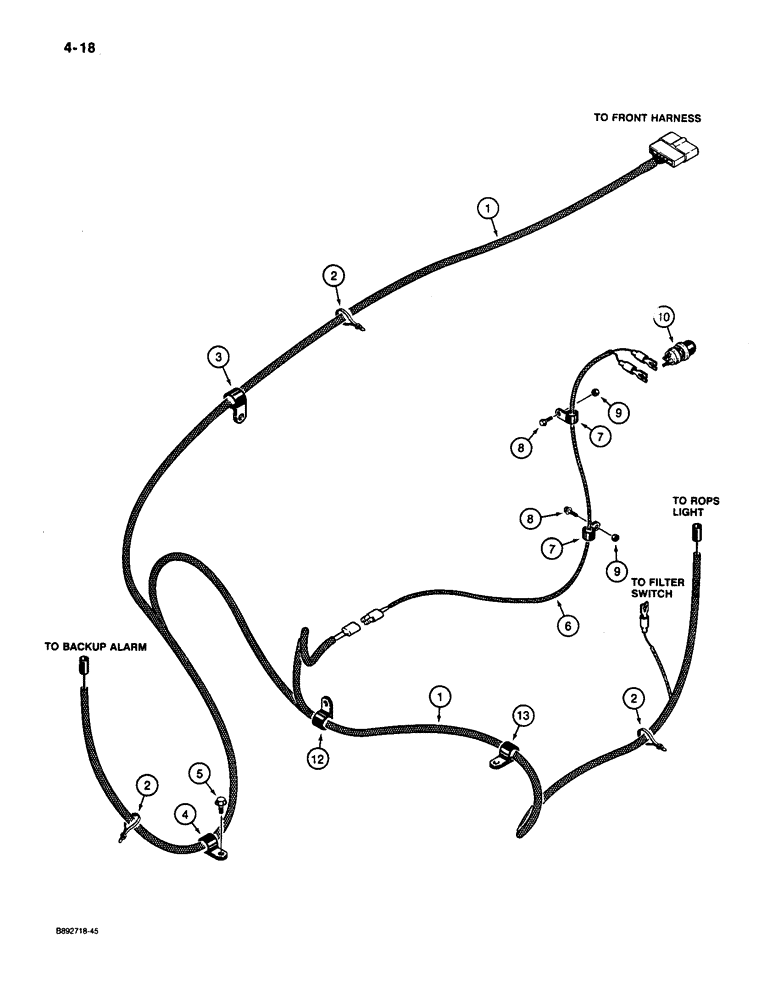

Запчасти Case 650 (4-18) - REAR WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

R56986

HARNESS

- rear wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

49838

CLAMP

- harness, 1/2 inch ID, left-hand

1шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, 1/4 inch ID, left-hand, at connection to backup alarm

1шт.

5

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

6

D39130

ELECTRICAL WIRE

WIRE - rear harness to starter switch

1шт.

7

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness, 3/8 inch ID, starter switch wire

2шт.

8

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

S241920

SWITCH

- push button, starter

1шт.

11

B17425

LOCTITE

SEALANT - pipe threads, Teflon, Loctite No 92, 50 ml tube, use to seal the rubber boot of Ref. 10 switch, not shown

1шт.

12

49838

CLAMP

- harness, 1/2 inch ID, rear harness to engine frame under operators seat

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, 1/4 inch ID, harness to equipment hydraulic line bracket under operators seat, uses bracket mounting hardware

1шт.
