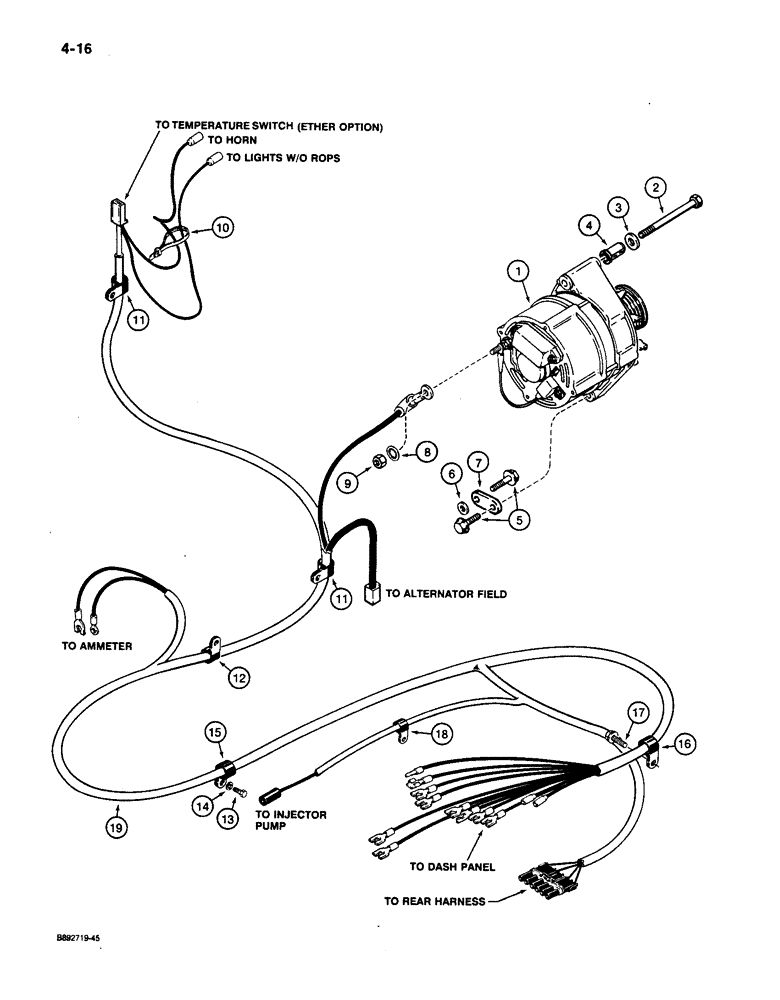

Запчасти Case 650 (4-16) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - parts list Figure 4-6

1шт.

1

AR186125GV

ALTERNATOR

Value

1шт.

1

AR186125

REMAN-ALTERNATOR

Reman For New PN A186125

1шт.

1

AC186125

CORE-ALTERNATOR

Return Number

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

1шт.

4

J902469

SPACER

SPACER - alternator mounting, upper

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, 3/8 inch, hardened

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, harness connection to alternator

1шт.

9

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

11

49838

CLAMP

CLAMP - harness, 1/2 inch ID

2шт.

12

49836

CLAMP

CLAMP - harness, 1/2 inch ID

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 12 - 1.75 x 25 mm

2шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

15

51200329

CLIP

CLAMP - harness, 1-5/32 inch ID

1шт.

16

84183C1

CLAMP

- harness, 1-1/4 inch ID

1шт.

17

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

1шт.

18

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

CLAMP - harness, closed, 1/4 inch ID

1шт.

19

R56985

HARNESS

HARNESS - front wiring

1шт.
