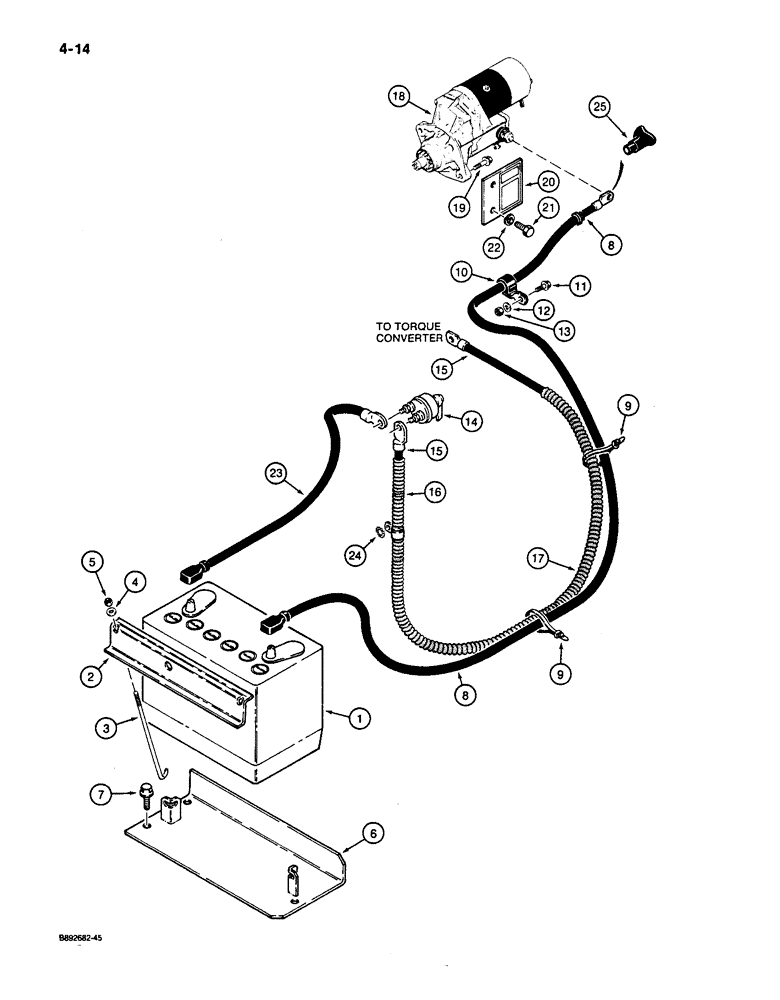

Запчасти Case 650 (4-14) - BATTERY MOUNTING, CABLES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - 12 volt, dry

1шт.

2

R51648

LARGE PLATE

PLATE, LARGE BRACKET - battery retaining

1шт.

3

R27652

ROD

BOLT - J-type

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

R57054

SUPPORT

PLATE - battery mounting

1шт.

7

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

8

R45988

CABLE PULLING GRIP

CABLE - battery, Serial Range: positive,-starter

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

10

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

CLAMP - twist, positive battery cable

1шт.

11

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

12

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

WASHER - flat, 25/64 x 3/4 x 1/16 inch

1шт.

13

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

1шт.

14

R52278

SWITCH

SWITCH - master disconnect

1шт.

15

CABLE - battery ground, includes clamp, use dozer lift tube bracket mounting hardware shown on Figure 8-12 for clamp, use torque converter mounting, Serial Range: hardware-ground

1шт.

16

R40777

CONDUIT

CONDUIT - 8 inch (203 mm) long, ground cable, upper, cut from R44806 bulk, see below

1шт.

17

R40572

CONDUIT

CONDUIT - 25 inch (635 mm) long, ground cable, lower, cut from R44806 bulk, see below

1шт.

18

A170746

STARTING MOTOR

STARTER ASSEMBLY - parts list Figure 4-2 and 4-4

1шт.

18

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

18

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

18

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

18

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

19

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special, starter mountng

2шт.

20

R51762

LARGE PLATE

PLATE, LARGE PLATE - below starter, includes jump start decal, for decal see Figure 9-46

1шт.

21

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT, Hex, M12 x 25, 8.8, Full Thd

2шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

23

R47203

CABLE

CABLE - battery, negative, with loom

1шт.

24

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - external-internal lock, 3/8 inch

1шт.

25

L126713

BOOT

BOOT - plastic, battery cable at starter

1шт.

R44806

LOOM

CONDUIT - 88-1/2 inch (2248 mm) long

1шт.
