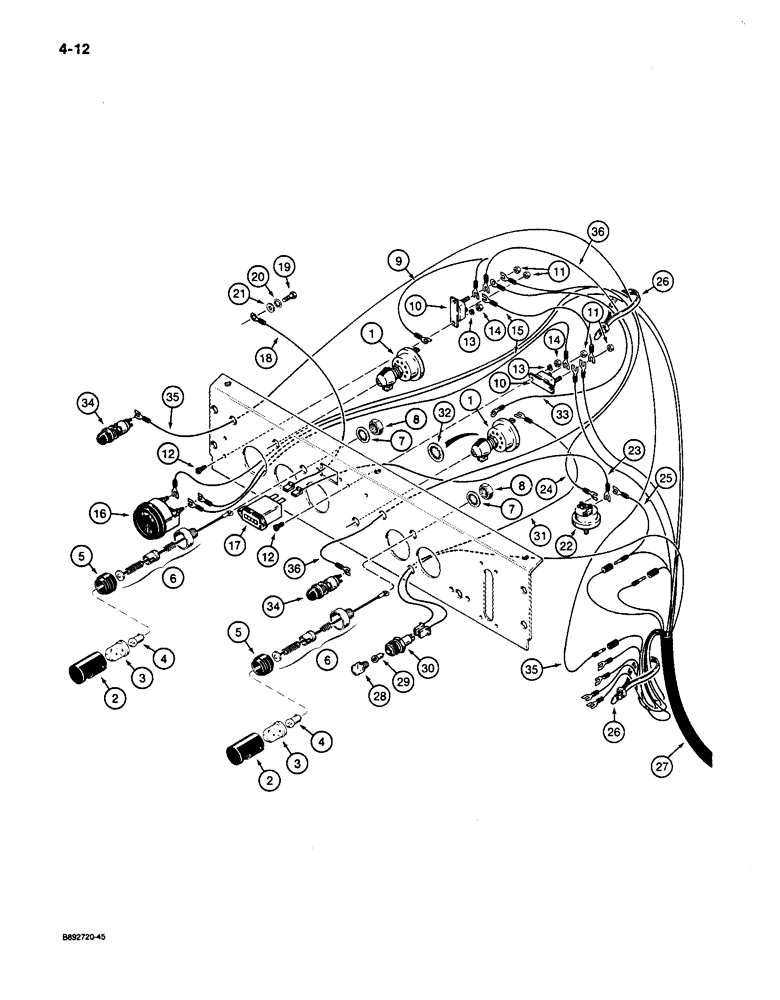

Запчасти Case 650 (4-12) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

R54064

IGNITION SWITCH

SWITCH - lamp and engine run

2шт.

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, if used, Includes: Ref. 2 - 6

2шт.

2

R22237

COVER

- lamp

1шт.

3

R22232

SIGHTGLASS

LENS - lamp

1шт.

4

71421

BULB,R5W, 12V, 5W

- No. 67

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR - rubber

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp, includes wire

1шт.

7

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , If used Int Tooth, 5/8"

2шт.

8

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF, if used

2шт.

9

51200220

ELECTRICAL WIRE

WIRE - jumper, lamp switch to left-hand circuit breaker, if used

1шт.

10

R45475

BREAKER

- circuit, 40 amp, Includes: Ref. 11

2шт.

11

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 NF

2шт.

12

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head, No. 8 NC x 1/2 inch

4шт.

13

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

14

225-14108

NUT,#8-32

- hex machine, No. 8 NC

4шт.

15

R56983

ELECTRICAL WIRE

WIRE - jumper, from left-hand circuit breaker and ammeter to right-hand circuit breaker

2шт.

16

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

17

L107631

METER

HOURMETER - engine

1шт.

18

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, to instrument panel and main frame

1шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

20

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

22

D28796

SWITCH

- engine oil pressure, includes wire, wire not used

1шт.

23

R27252

HARNESS

WIRE - hourmeter to pressure switch

1шт.

24

R33638

ELECTRICAL WIRE

WIRE - pressure switch to circuit breaker

1шт.

25

R43547

CABLE

WIRE - with diode, pressure switch to front wiring harness

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

27

R56985

HARNESS

- front wiring

1шт.

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - filter indicator, Includes: Ref. 28 - 30

1шт.

28

71652C1

LENS

- lamp

1шт.

29

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

31

R27252

HARNESS

WIRE - filter indicator lamp to engine run switch

1шт.

32

493-21104

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch, Engine run switch

1шт.

33

R49740

ELECTRICAL WIRE

WIRE - engine run switch to circuit breaker

1шт.

34

S241920

SWITCH

- push button, horn and cold start

2шт.

35

R51894

ELECTRICAL WIRE

WIRE - jumper, cold start switch to front harness

1шт.

36

F21342

ELECTRICAL WIRE

WIRE - horn, push button to circuit breaker

1шт.

37

B17425

LOCTITE

SEALANT - pipe threads, Teflon, Loctite No 92, 50 ml tube, use to seal the rubber boot of Ref. 34 switch, not shown

1шт.
