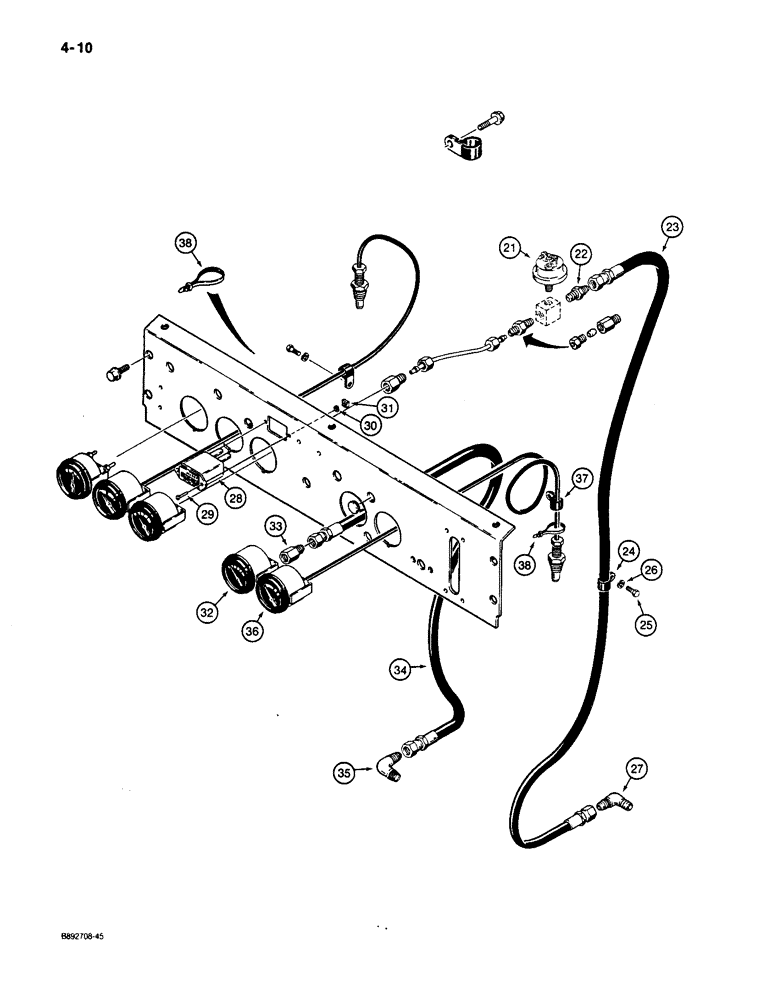

Запчасти Case 650 (4-10) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

21

D28796

SWITCH

- engine oil pressure, see Figure 4-12 for electrical connections

1шт.

22

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

23

D95117

HOSE

- engine oil pressure, 57 inch (1448 mm) long

1шт.

24

49836

CLAMP

- engine oil pressure hose

1шт.

25

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

27

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

- 90 degree, 7/16-20 flare x 1/8 inch PT, engine oil pressure, left-hand side of engine block

1шт.

28

L107631

METER

HOURMETER - engine

1шт.

29

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister head, No. 5 NC x 1/2 inch

2шт.

30

492-11005

LOCK WASHER,#5

Washer, Lock, #5

2шт.

31

129-44

SQUARE NUT,Sq, #5-40

2шт.

32

R53929

GAUGE

- transmission oil pressure

1шт.

33

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch female PT

1шт.

34

R56604

HOSE ASSY.

HOSE - transmission oil pressure, 50 inch (1270 mm) long

1шт.

35

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT, transmission oil pressure

1шт.

36

R54145

GAUGE

- torque converter temperature

1шт.

37

51200330

CLAMP

- torque converter temperature cable, uses torque converter mounting hardware

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
