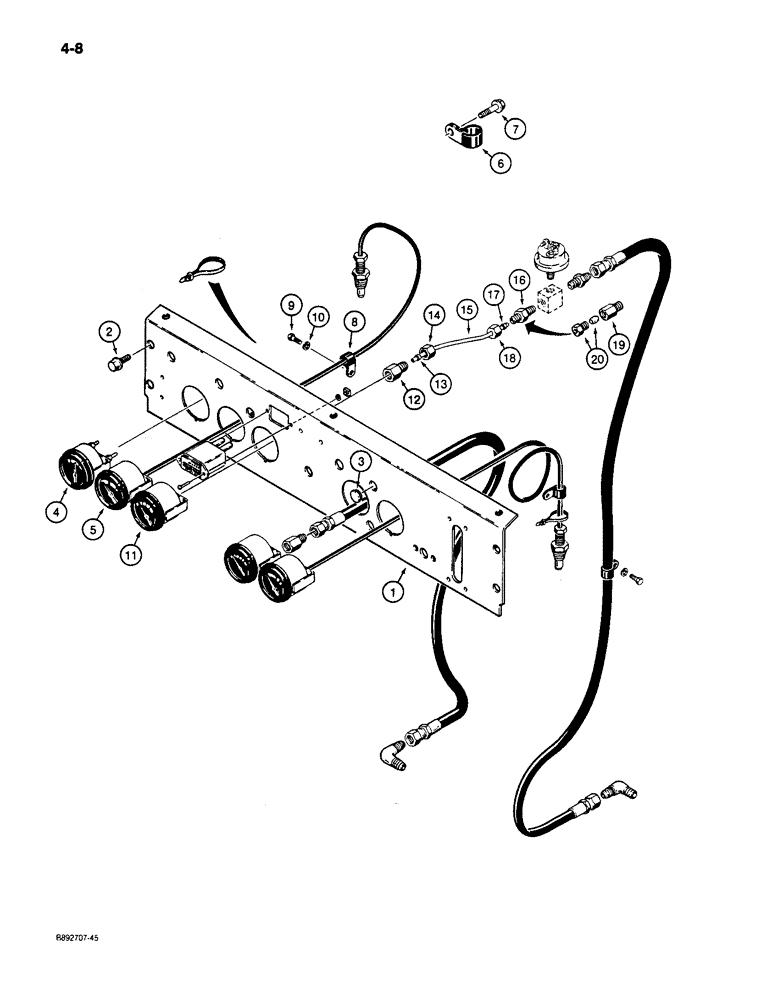

Запчасти Case 650 (4-08) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R56981

PANEL, INSTRUMENTS

PANEL - instrument, includes decal, see Figure 9-46 for decal

1шт.

2

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, if used

5шт.

4

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

5

R52133

GAUGE

- engine temperature

1шт.

6

D41564

- on firewall, holds most harnesses and cables coming from the instrument panel

1шт.

7

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

1шт.

8

51200329

CLIP

CLAMP - engine temperature cable above flywheel housing

1шт.

9

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

11

R49132

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER - straight, engine oil pressure gauge, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

13

D37176

SLEEVE

- compression

1шт.

14

D37362

TUBE NUT

- adapter

1шт.

15

A149565

TUBE

- nylon, 15 inch (381 mm) long, engine oil pressure, cut from A138483, see below

1шт.

For the instrument panel hinged lockup cover, see Figure 9-20.

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for service order 222-400 adapter, see Refs. 19 and 20, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

17

D37176

SLEEVE

- compression

1шт.

18

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, service replacement for D35816 adapter, see Refs. 16 - 18, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

20

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

A138483

TUBE

- nylon, 99 inch (2515 mm) long

1шт.

For the instrument panel hinged lockup cover, see Figure 9-20.

1шт.
