(3-10) - FUEL FILTER, 4T-390 ENGINE

Запчасти Case 650 (3-10) - FUEL FILTER, 4T-390 ENGINE (03) - FUEL SYSTEM

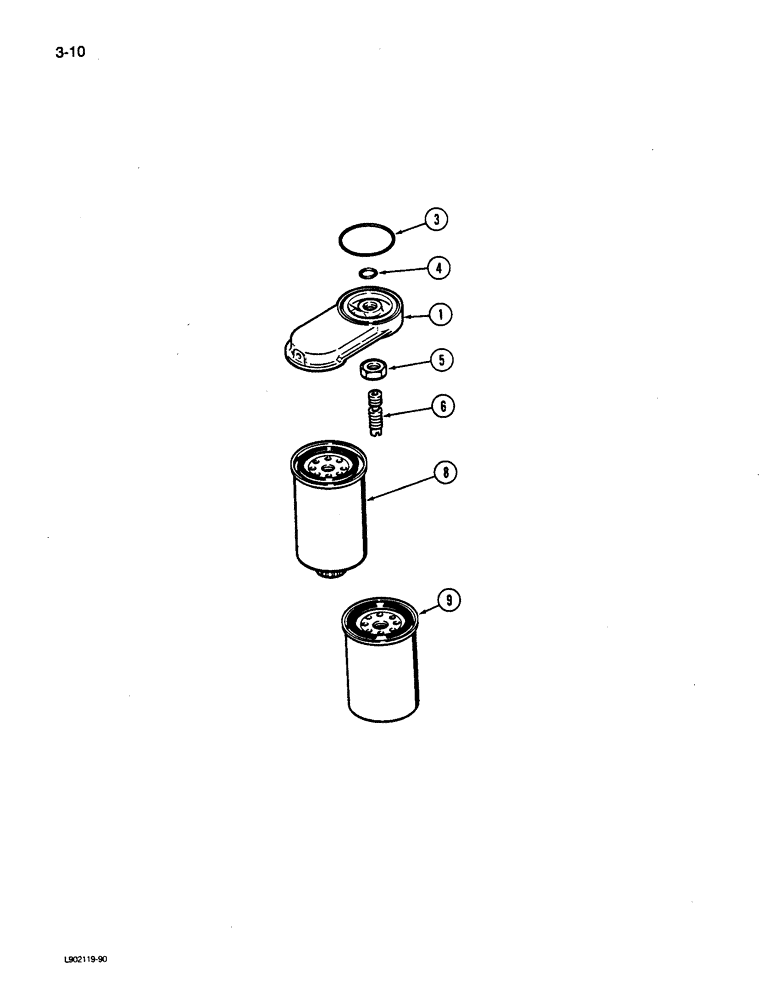

Схема запчастей Case 650 - (3-10) - FUEL FILTER, 4T-390 ENGINE (03) - FUEL SYSTEM
6
9
3
4
5
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.

Выбрано товаров: 8
