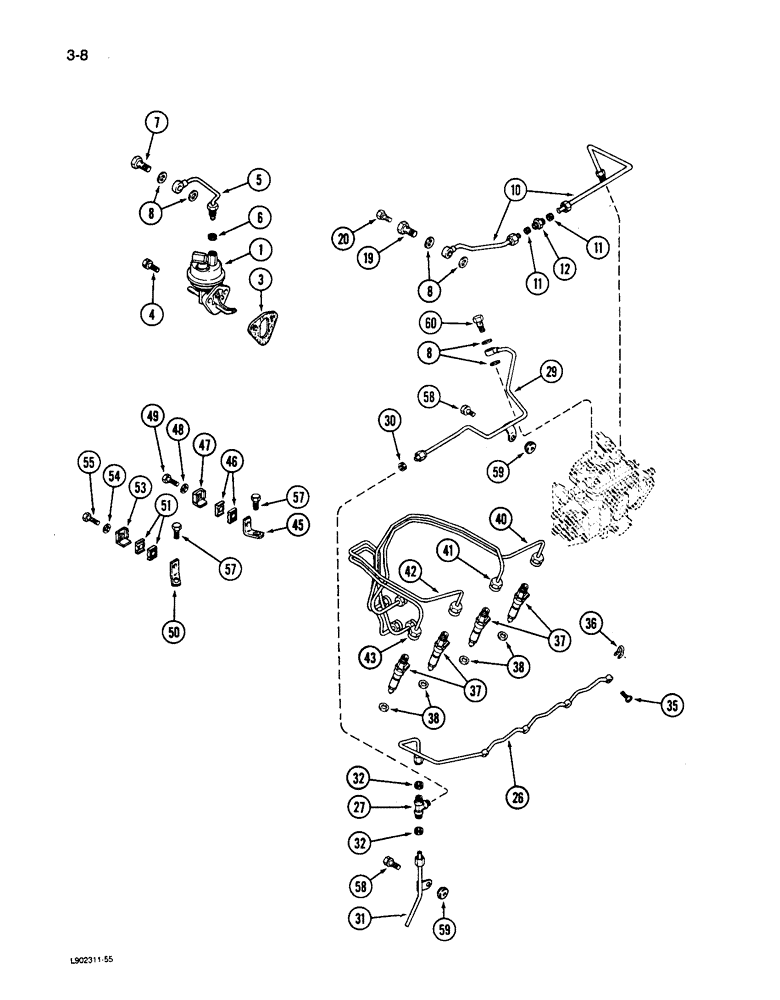

Запчасти Case 650 (3-08) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

3

J914304

GASKET

- fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

8

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

6шт.

10

J917564

FUEL TUBE,363.9, 85 mm L

TUBE ASSEMBLY - fuel supply, filter to tee, Includes: Ref. 11 and 12

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR - straight, 5/16 inch tube

1шт.

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special (Order J905860)

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY - fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (Discard before assembly) 3/8"-24, 45º Fl, Comp

3шт.

29

J905699

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel return, tee to pump, Includes: Ref. 30

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank, Includes: Ref. 32

1шт.

32

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

- connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-14)

4шт.

38

J900808

SEAL

- injector

4шт.

40

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

41

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

42

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

43

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 1 and 2, Includes: Ref. 45 - 49

1шт.

45

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

46

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

47

NSS

NOT SOLD SEPARAT

PLATE - clamp, fuel tube

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - lock, M5

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 3 and 4, Includes: Ref. 50 - 55

1шт.

50

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

51

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

53

J917746

CLAMP

PLATE - clamp, fuel tube

1шт.

54

NSS

NOT SOLD SEPARAT

WASHER - lock, M5

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

57

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

59

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

60

J905465

BANJO BOLT

SCREW - banjo, connector

1шт.
