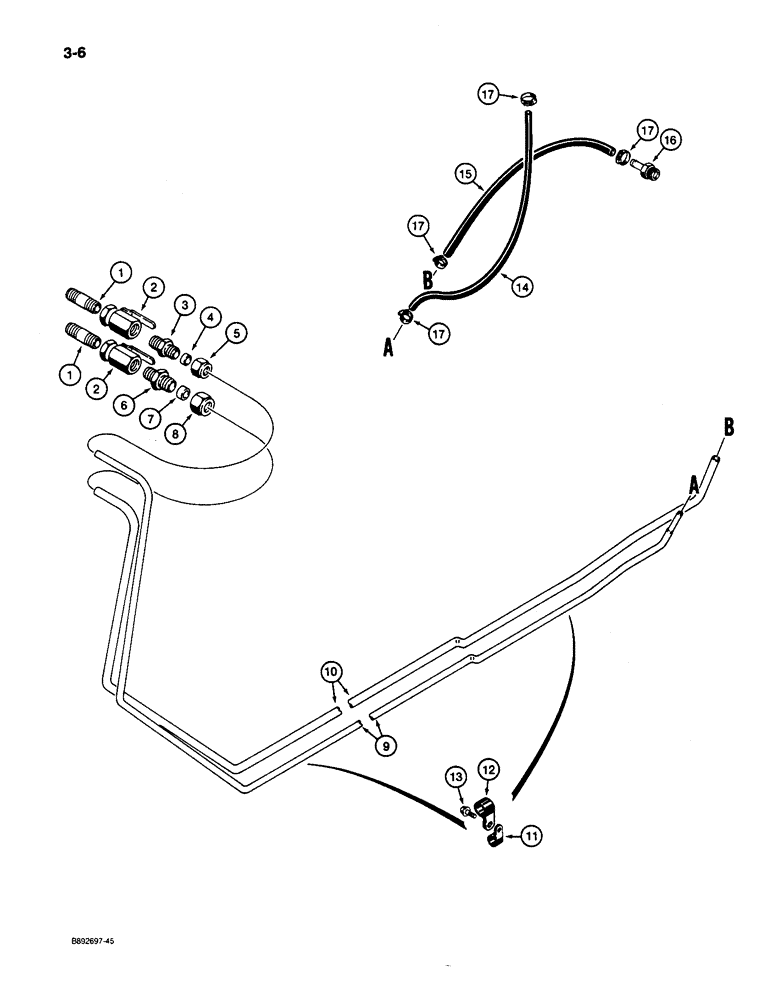

Запчасти Case 650 (3-06) - FUEL LINES (03) - FUEL SYSTEM

1

221-135

PIPE,Nipple, 1/4" NPT x 1 5/8"

NIPPLE - 1/4 PT x 1-5/8 inch

2шт.

2

R47797

VALVE

- shutoff, fuel tank

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/4 inch PT, upper, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

4

222-102

SLEEVE,1/4" Tube

1шт.

5

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

ADAPTER - compression, 5/16 tube OD x 1/4 inch PT, lower, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

7

222-103

SLEEVE,5/16" Tube

1шт.

8

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

9

R49993

FUEL TUBE,0.25" OD

TUBE - upper, fuel return, 1/4 inch OD

1шт.

10

R49992

FUEL TUBE,0.312" OD

TUBE - lower, fuel supply, 5/16 inch OD

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, 1/4 inch

2шт.

12

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube, 5/16 inch

2шт.

13

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

14

S119600

FUEL HOSE,0.19" ID x 10.00", SAE 30R3

HOSE 0.19" ID x 10.0", SAE 30R3, Return, Filter to Fuel Tank, Cut from Bulk Hose, See below

1шт.

15

R48303

FUEL HOSE,7.93 mm ID x 300.00 mm, SAE 100R3

Supply, Fuel Tank to Lift Pump 7.93 mm ID x 300.00 mm, SAE 100R3

1шт.

16

217-206

FITTING

ADAPTER - straight, 5/16 stem end x 1/4 inch PT, at fuel lift pump

1шт.

17

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

4шт.

S118575

HOSE,0.19" ID x 300.00", SAE 30R3

- Bulk, Use to make Ref. 14 0.19" ID x 300.00", SAE 30R3

1шт.
