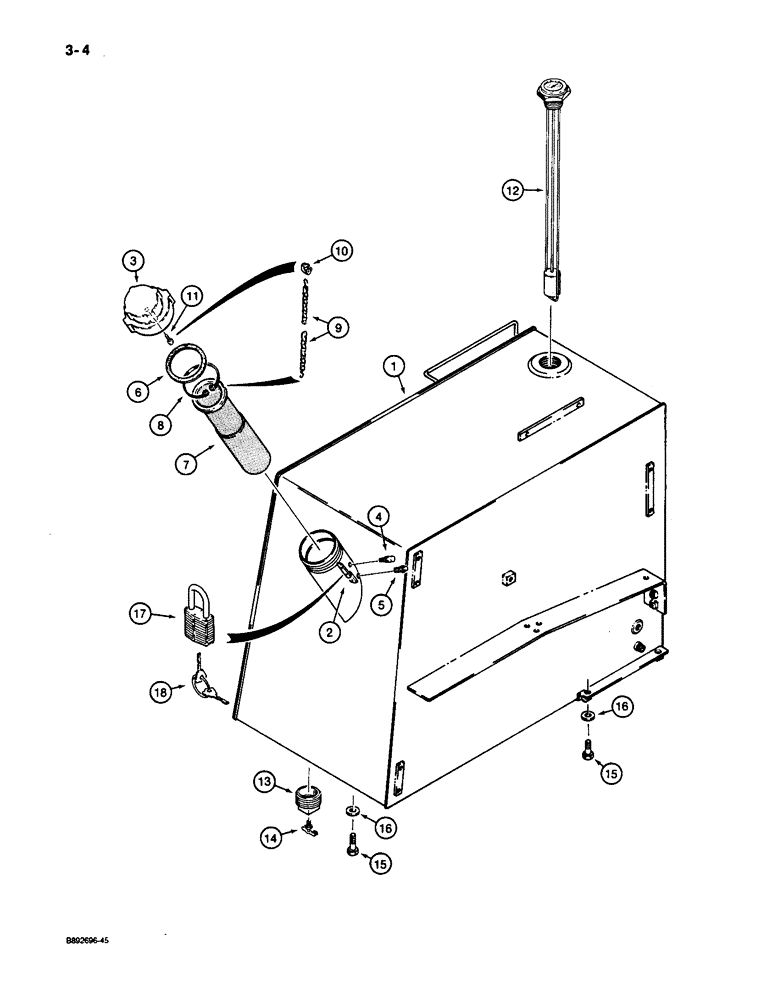

Запчасти Case 650 (3-04) - FUEL TANK (03) - FUEL SYSTEM

1

R47541

FUEL TANK

TANK - fuel, Includes: Ref. 2 and 3

1шт.

2

R46704

BRACKET

TAB - locking, fuel cap, weld-on

1шт.

3

R46693

CAP

- fuel tank

1шт.

4

D33028

VALVE

- relief, fuel tank

1шт.

5

D33027

BREATHER

VALVE - air inlet, fuel tank

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

- rubber, fuel cap

1шт.

7

R51771

STRAINER ASSY.

STRAINER - fuel

1шт.

8

D38743

SNAP RING,3.00", Int, #300

chain 3.00", Int, #300

1шт.

9

R47786

CHAIN (CE)

CHAIN - fuel cap

1шт.

10

R48634

FASTENER

HOOK - chain

1шт.

11

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

- drive, round head, No. 12 x 3/4 inch

1шт.

12

R49775

FUEL GAUGE

GAUGE - fuel tank

1шт.

13

R27578

PLUG

- drain, fuel tank

1шт.

14

217-81

VALVE

- drain plug

1шт.

15

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

16

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32, hardened

4шт.

17

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 18

1шт.

18

R29555

KEY

- for Master padlock only, if used

2шт.

18

D93751

SET OF 2 KEYS

KEY - for Yale padlock, if used

2шт.
