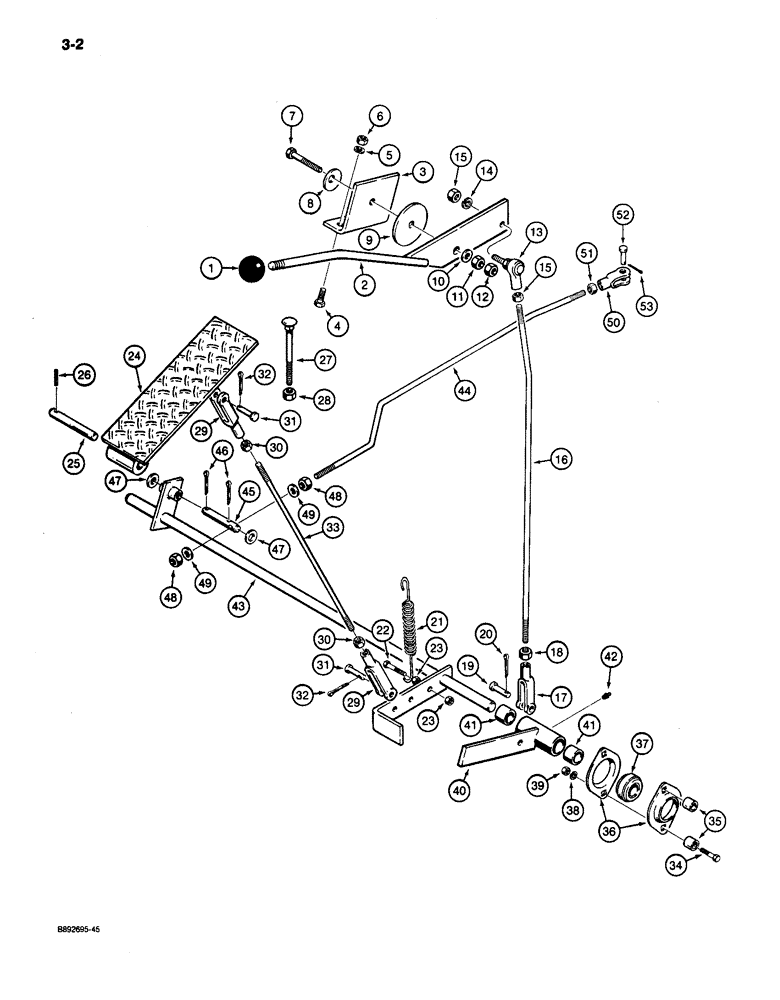

Запчасти Case 650 (3-02) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

- control lever

1шт.

2

R26931

LEVER

- control, hand throttle

1шт.

3

R26944

SUPPORT

BRACKET - mounting, control lever

1шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

SPRING - Belleville, control lever

1шт.

9

D139323

FRICTION WASHER

DISC - friction, control lever

1шт.

10

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

12

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

13

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, 5/16 inch NF

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

16

R56960

ROD

- connecting, control lever to cross shaft

1шт.

17

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16 inch NF

1шт.

18

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

19

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

1шт.

20

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21

R36912

SPRING

- return

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

R26937

PEDAL

- foot throttle

1шт.

25

R17364

SHAFT

- pedal

1шт.

26

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, , center groove 5/32" x 1", Type E

1шт.

27

111-503

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - carriage, 1/2 NC x 4 inch

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

29

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16 inch NF

2шт.

30

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

31

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

2шт.

32

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

33

R32621

ROD

- connecting, foot pedal

1шт.

34

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

35

D34162

SPACER

- flange

4шт.

36

F13526

FLANGED BEARING

FLANGE - ball bearing

4шт.

37

R46666

BALL BEARING,0.627" ID x 1.575" OD x 1.125"

BEARING - ball, shaft

2шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

40

R55093

LEVER

- connecting, hand throttle, Includes: Ref. 41 and 42

1шт.

41

R31144

BUSHING

- lever

2шт.

42

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

43

R34870

JACKSHAFT

SHAFT - cross, throttle control

1шт.

44

R56961

ROD

- accelerator

1шт.

45

D47686

SHAFT

PIN - throttle control shaft to accelerator rod

1шт.

46

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

47

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

48

131-30

LOCK NUT,1/4"-28, G8

NUT - thin hex, self-locking, 1/4 inch NF

2шт.

49

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

50

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4 inch NF

1шт.

51

425-114

NUT,1/4"-28, G5

1шт.

52

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 49/64 inch

1шт.

53

432-58

COTTER PIN,5/64" x 1/2"

5/64" x 1/2"

1шт.
