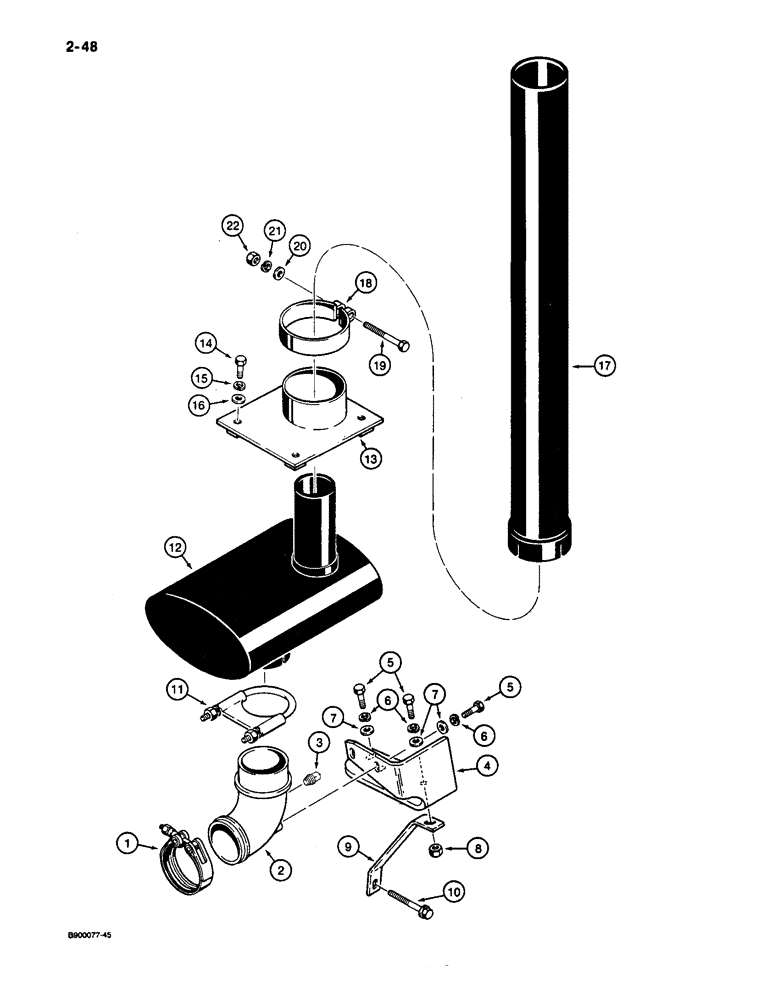

Запчасти Case 650 (2-48) - MUFFLER MOUNTING AND EXHAUST PARTS (02) - ENGINE

1

A170467

CLAMP,72mm ID

- tube, at turbocharger

1шт.

2

A173623

ELBOW

TUBE - elbow, from turbocharger

1шт.

3

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- hex socket, 1/4 inch PT

1шт.

4

L126939

SUPPORT

BRACKET - tube support

1шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 30 mm

5шт.

6

892-11010

LOCK WASHER,M10

5шт.

7

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 3/16 inch

5шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

L115129

SUPPORT

BRACE - exhaust bracket

1шт.

10

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

- hex flange, 10 mm - 1.5 x 80 mm

1шт.

11

L73711

CLAMP

- muffler to turbocharger tube

1шт.

12

A189478

MUFFLER

- exhaust

1шт.

13

R57493

SUPPORT

BRACKET - exhaust pipe

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 3/16 inch

4шт.

17

R50444

PIPE

- exhaust, muffler

1шт.

18

R42854

CLAMP

- exhaust pipe

1шт.

19

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

20

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

21

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.
