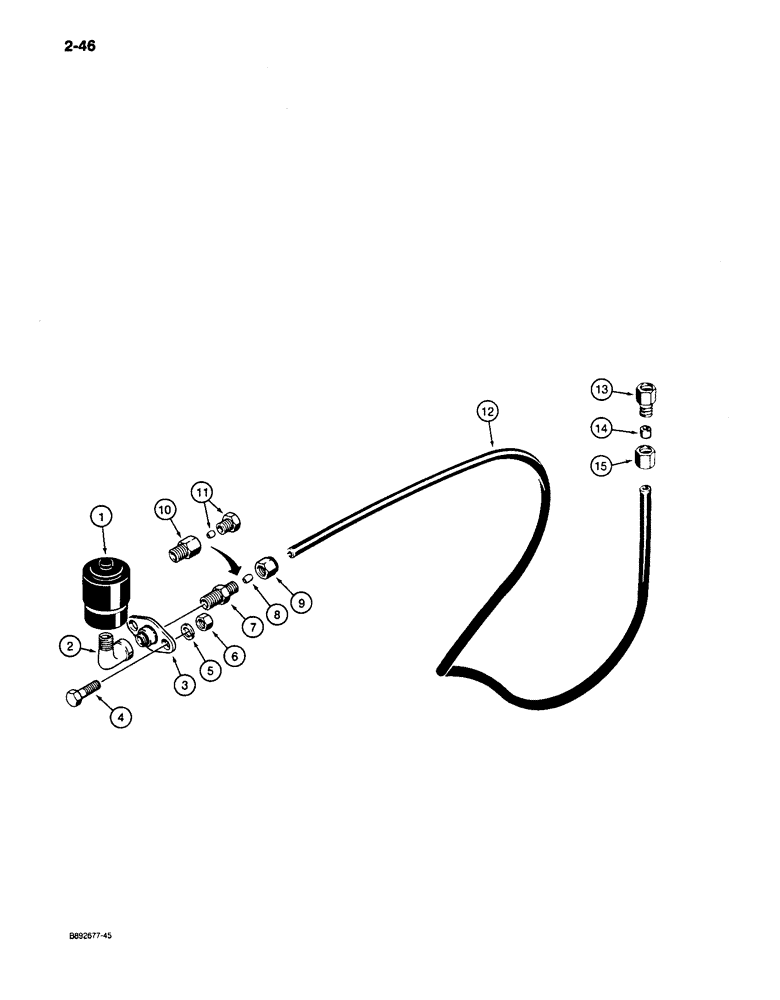

Запчасти Case 650 (2-46) - AIR RESTRICTION INDICATOR (02) - ENGINE

1

A59569

INDICATOR

- restriction, air

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

D35816

CONNECTOR, ELEC

ADAPTER ASSEMBLY - compression, straight, production part, for service order 222-400 adapter assembly, see Refs. 10 and 11, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- adapter

1шт.

9

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, service replacement for D35816 adapter assembly, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

12

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

TUBE - nylon, 20-7/8 inch (530 mm) long, cut from L60539 bulk, see below

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY - female, at air cleaner hose, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

14

D37176

SLEEVE

- adapter

1шт.

15

D37362

TUBE NUT

- hex, special

1шт.

L60539

TUBE,0.125" OD x 168" L

- 1/8 inch (3 mm) OD x 14 ft (4267 mm) long

1шт.
