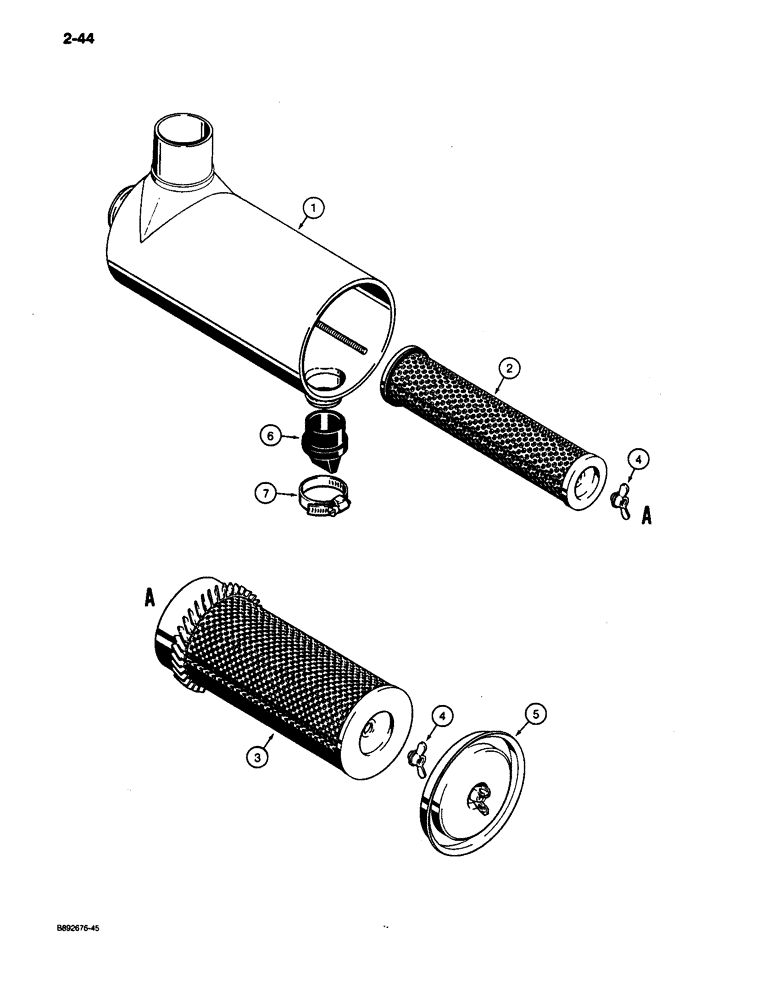

Запчасти Case 650 (2-44) - AIR CLEANER ASSEMBLY (02) - ENGINE

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A47033

AIR FILTER

ELEMENT - secondary, inner

1шт.

3

A47032

AIR FILTER

ELEMENT - primary, outer

1шт.

4

D78354

WING NUT

NUT - wing, element

2шт.

5

A52419

COVER

- end, with tab for primary element wing nut retention

1шт.

6

S113982

CAP

CUP - dust, air cleaner

1шт.

7

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 to 3-1/2 inch dia, not part of air cleaner assembly, order separately

1шт.
