(2-40) - RADIATOR ASSEMBLY

Запчасти Case 650 (2-40) - RADIATOR ASSEMBLY (02) - ENGINE

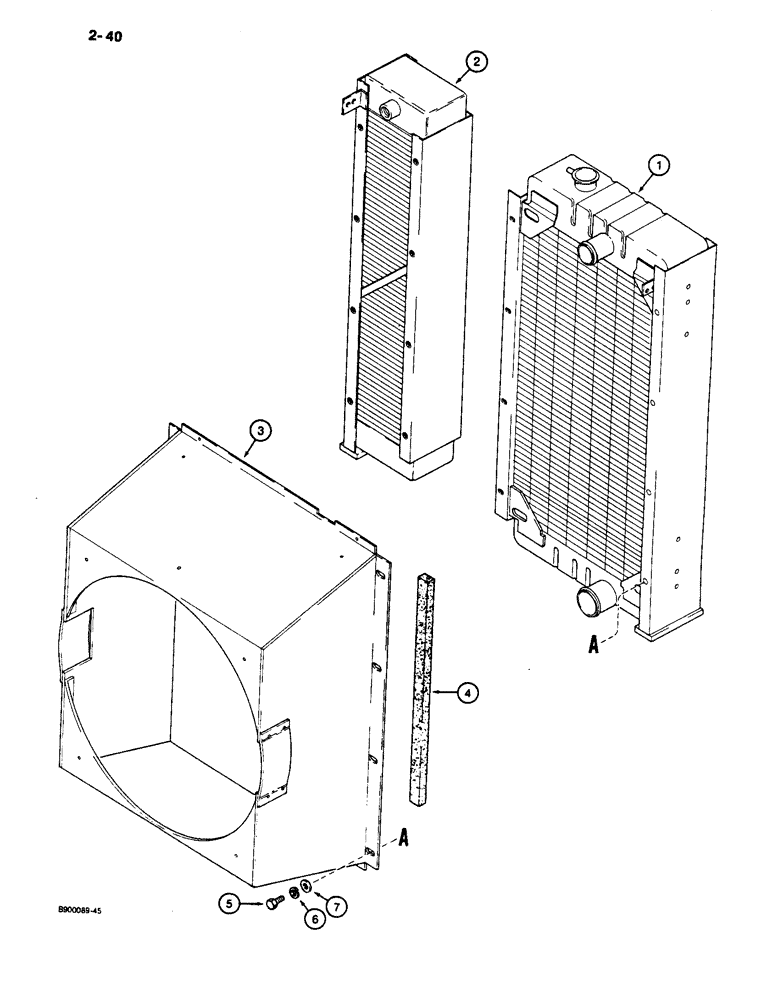

Схема запчастей Case 650 - (2-40) - RADIATOR ASSEMBLY (02) - ENGINE
6
5
3
4
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R56880

RADIATOR

ASSEMBLY - engine and oil cooling, Includes: Ref. 1 - 7

1шт.

1

S301079

ALTERNATOR

RADIATOR - engine cooling

1шт.

2

S301080

OIL COOLER

COOLER - oil

1шт.

3

S301081

SHROUD

- radiator

1шт.

4

S301082

SEAL

- radiator shroud

2шт.

5

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

16шт.

6

492-11038

LOCK WASHER,3/8"

16шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.
