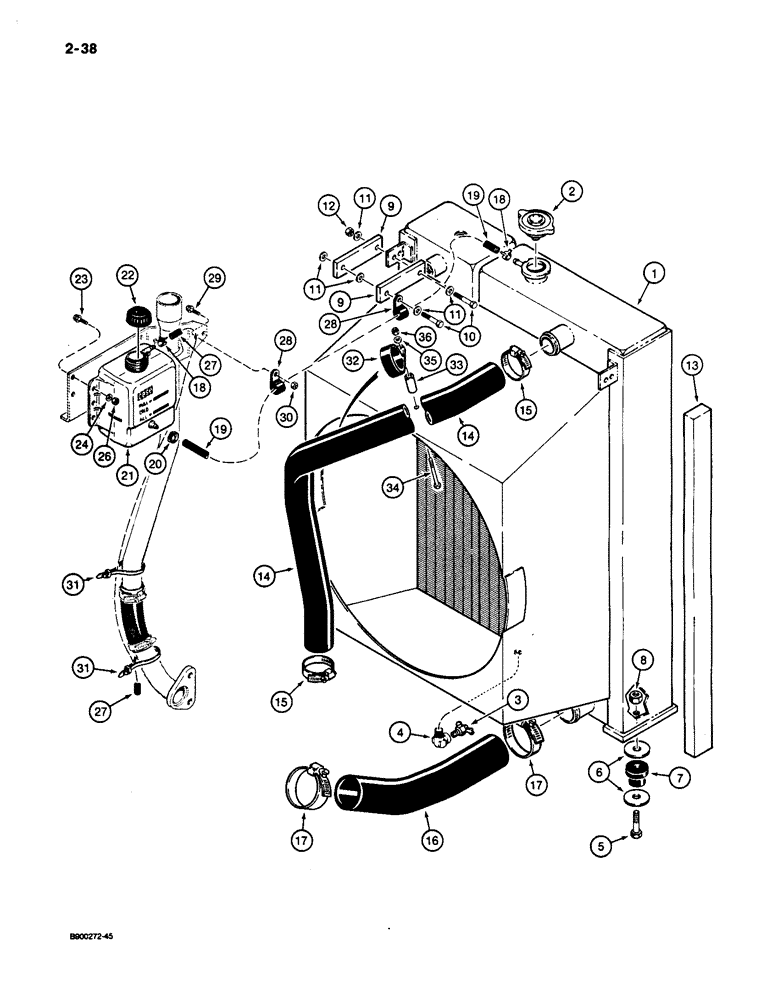

Запчасти Case 650 (2-38) - RADIATOR, HOSES, AND COOLANT BOTTLE (02) - ENGINE

1

R56880

RADIATOR

- engine cooling, see parts list Figure 2-40

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-92

COCK

VALVE - drain, 1/4 inch PT, radiator

1шт.

4

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree, street, 1/4 inch tapered PT, radiator valve drain

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

6

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

- flat, hardened, special

4шт.

7

R29799

SHOCK ABSORBER

INSULATOR - rubber, radiator mounting

2шт.

8

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

9

D73500

STRAP

- radiator mounting

4шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, Use with Loctite 242

4шт.

11

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8 inch

10шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

R53656

PAD - radiator baffle, 2 inch (51 mm) x 32-1/2 inch (828 mm), cut from R30870, see below

2шт.

For upper radiator baffle and pad, see Figure 9-22

1шт.

14

R57156

RADIATOR HOSE,44.50" ID x 512.00 mm, SAE 20R4 Class C

HOSE - radiator, upper

1шт.

15

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

CLAMP - adj, 1-3/4 - 2-5/8 inch dia, upper radiator hose

2шт.

16

R56956

RADIATOR HOSE,58.00 mm ID x 445.00 mm, SAE 20R4 Class C

HOSE - radiator, lower

1шт.

17

214-177

CLIP

CLAMP - adj, 2-1/4 to 3-1/8 inch dia, lower radiator hose

2шт.

18

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, coolant bottle hoses

2шт.

19

A171087

HOSE,7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

Radiator to coolant bottle, See Parts Substitution List for bulk hose options and cut to length 7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., at coolant bottle #4, 0.25/0.62 Type F Worm

1шт.

21

L127093

RESERVOIR

BOTTLE - coolant

1шт.

22

A184079

CAP

- coolant bottle

1шт.

23

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

24

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

26

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

27

A189144

HOSE,8.30 mm ID x 1050.00 mm

- Coolant bottle overflow, See Parts Substitution List for bulk hose options and cut to length 8.30 mm ID x 1050.00 mm

1шт.

28

49838

CLAMP

- plastic coated, coolant bottle hoses

2шт.

29

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

32

R57155

CLAMP

- upper radiator hose to fan shroud

1шт.

33

D40893

BUSHING

SPACER - radiator hose clamp to fan shroud

1шт.

34

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

35

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

R30870

PAD

- bulk, 54 (1372 mm) x 72 (1829 mm) x 1 inch (25 mm)

1шт.

For upper radiator baffle and pad, see Figure 9-22

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
