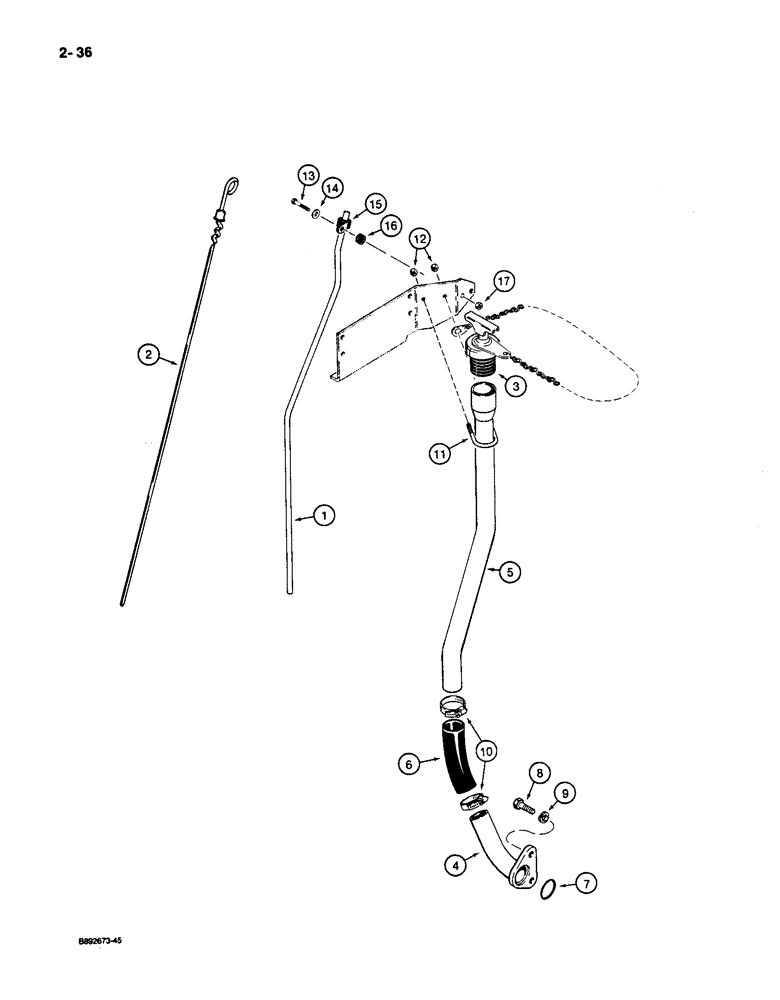

Запчасти Case 650 (2-36) - ENGINE DIPSTICK AND FILL TUBE (02) - ENGINE

1

R57347

TUBE,9.52 mm OD x 182, 835 mm L

- dipstick

1шт.

2

R47937

DIPSTICK

- engine oil

1шт.

3

L115504

CAP

- filler tube, includes chain

1шт.

4

R53750

TUBE,24 mm L

- engine oil fill, lower

1шт.

5

R57514

TUBE,52.39 mm ID x 38.1 mm OD x 670, 100 mm L

- engine oil fill, upper

1шт.

6

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Engine Oil Fill 38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

7

J906704

O-RING

- fill tube

1шт.

8

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

10

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, engine oil fill 1.25/2.125 HD Worm

2шт.

11

L73167

U-BOLT

- upper engine oil fill tube to coolant recovery bottle bracket

1шт.

12

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- dipstick tube

1шт.

16

R39516

GROMMET

- rubber, vibration dampener

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.
