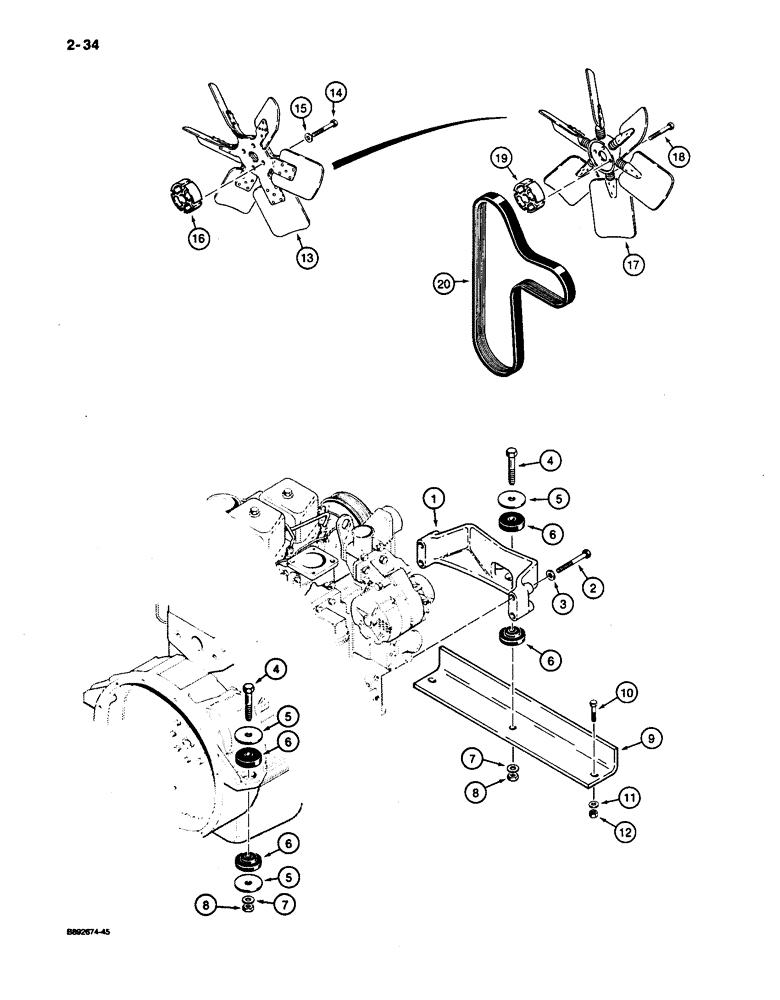

Запчасти Case 650 (2-34) - ENGINE MOUNTING, FAN, AND FAN BELT (02) - ENGINE

1

A170985

BRACKET

SUPPORT - engine, front

1шт.

2

A171690

BOLT

BOLT - special, 12 - 1.75 x 85 mm

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch, use with Loctite 242

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, 5/8 inch, special

5шт.

6

R49482

RUBBER MOUNTING

INSULATOR - rubber, engine and flywheel housing mounting

6шт.

7

95-11066

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 7/64 inch

3шт.

8

25-1010

NUT,5/8"-11, G5

3шт.

9

R56891

SUPPORT

MOUNT - engine support, front

1шт.

10

113-2449

LOCK BOLT,Locking, 1/2"-13 x 1 3/4", G8

BOLT, Locking, 1/2"-13 x 1 3/4", G8

2шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

A173557

FAN

- pusher, if used

1шт.

14

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 mm - 1.5 x 55 mm, class 10.9

4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

16

A184544

SPACER

- pusher fan

1шт.

17

A173564

FAN

- reversible, if used

1шт.

18

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 55 mm, class 10.9, special

4шт.

19

A184544

SPACER

- reversible fan

1шт.

20

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.
