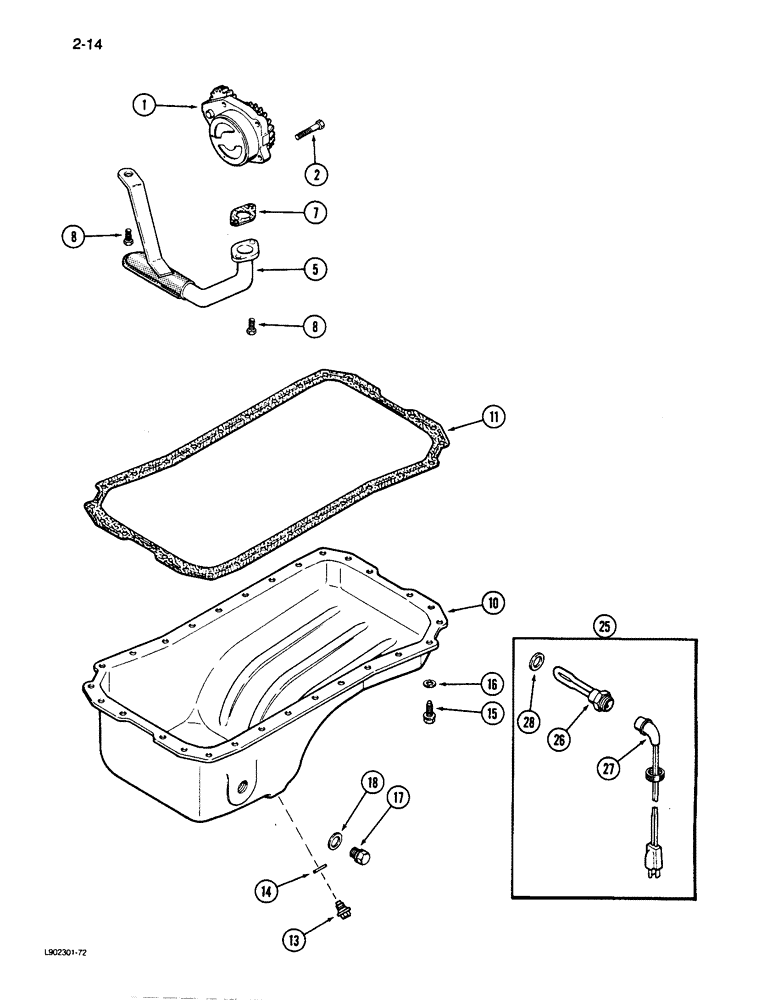

Запчасти Case 650 (2-14) - OIL PUMP AND OIL PAN, 4T-390 ENGINE (02) - ENGINE

1

J914005

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine

1шт.

JR901384

REMAN-ENG OIL PUMP

PUMP - oil, remanufactured (North Amercia only)

1шт.

JC901384

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 30 mm

4шт.

5

J905205

TUBE,1" OD

TUBE - suction, oil

1шт.

7

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 16 mm

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

14

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

28шт.

16

J907537

SPRING WASHER

WASHER - spring, pan bolt

28шт.

17

J904386

PLUG

PLUG - pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

A77673

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11 and 14

1шт.

25

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 26 and 27

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt (Order A77490), engine oil

1шт.

27

J905113

CABLE

CABLE - heater electric, engine oil

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, engine oil heater

1шт.
