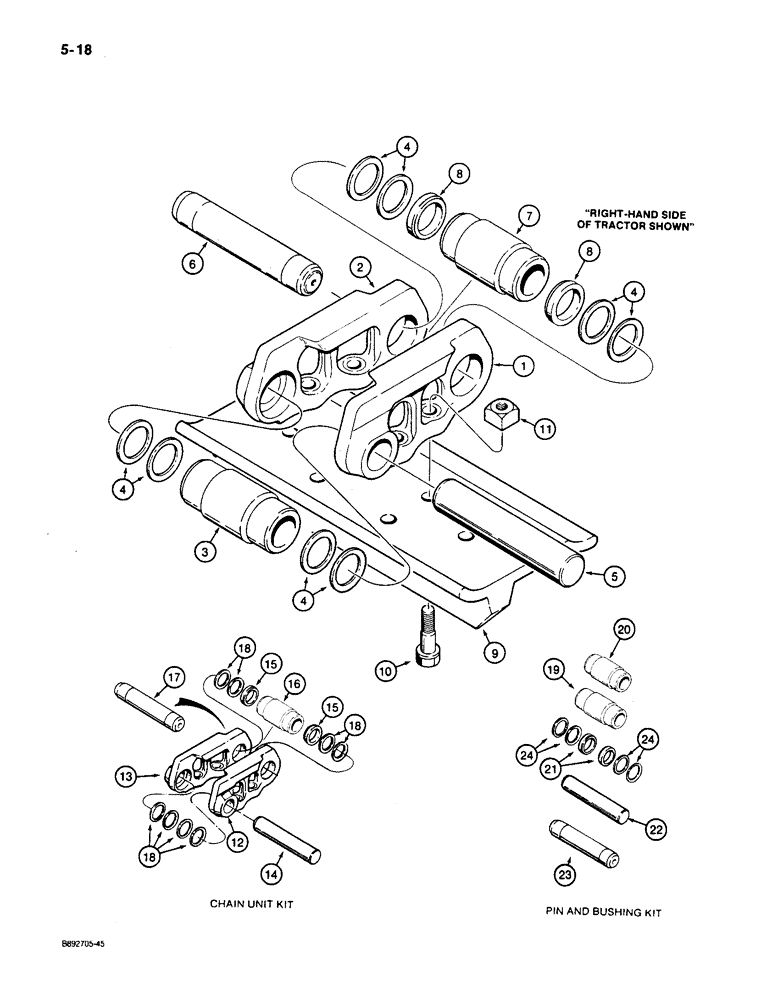

Запчасти Case 650 (5-18) - SEALED TRACK CHAIN (OPTIONAL) (11) - TRACKS/STEERING

R57104

CHAIN (CE)

CHAIN ASSEMBLY - track, 36 unit, Includes: Ref. 1 - 8

2шт.

1

R56490

LINK

- track, right-hand

36шт.

2

R56489

LINK

- track, left-hand

36шт.

3

R56517

BUSHING

- standard pin

35шт.

4

R50211

WASHER

SPRING - Belleville, bushing

144шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

- standard

35шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

- master

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master pin

1шт.

8

R50210

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

SHOE - track, see Figure 5-20 for track shoe options

72шт.

10

D48004

FLANGE BOLT

BOLT - hex, special

288шт.

11

R52904

NUT

- square, special

288шт.

R56022

CHAIN (CE)

KIT - chain unit, includes instruction sheet, (includes standard and master track pins), Includes: Ref. 12 - 18

1шт.

12

R56490

LINK

- track, right-hand, chain unit kit (includes standard and master track pins)

1шт.

13

R56489

LINK

- track, left-hand, chain unit kit (includes standard and master track pins)

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

- track, standard, chain unit kit

2шт.

15

R50210

SPACER

- bushing, master pin, chain unit kit (includes standard)

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master pin, chain unit kit (includes standard)

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

- master, chain unit kit (includes standard track pin)

1шт.

18

R50211

WASHER

SPRING - Belleville, bushing, chain unit kit (includes standard and master track pins)

8шт.

R56023

KIT

- pin and bushing, includes instruction sheet, (service complete track chain, both sides of tractor), Includes: Ref. 19 - 24

1шт.

19

R56517

BUSHING

- standard pin and bushing kit (services complete track chain, both sides of tractor)

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master pin and bushing kit (services complete track chain, both sides of tractor)

2шт.

21

R50210

SPACER

- master bushing and pin kit (services complete track chain, both sides of tractor)

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

- standard, bushing kit (services complete track chain, both sides of tractor)

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

- master, bushing kit (services complete track chain, both sides of tractor)

2шт.

24

R50211

WASHER

SPRING - Belleville, bushing and pin kit (services complete track chain, both sides of tractor)

304шт.
